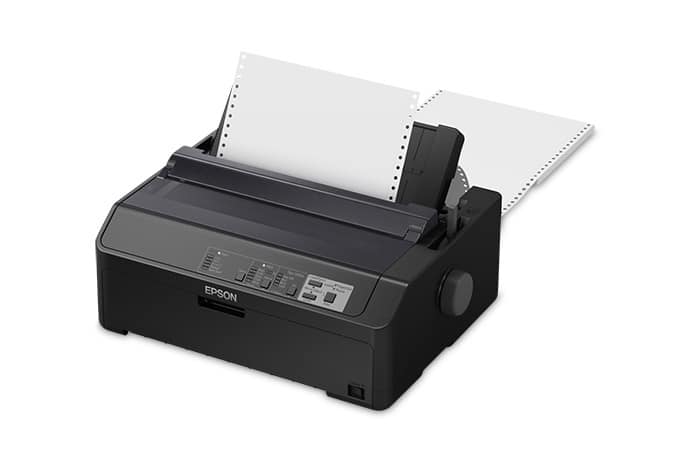

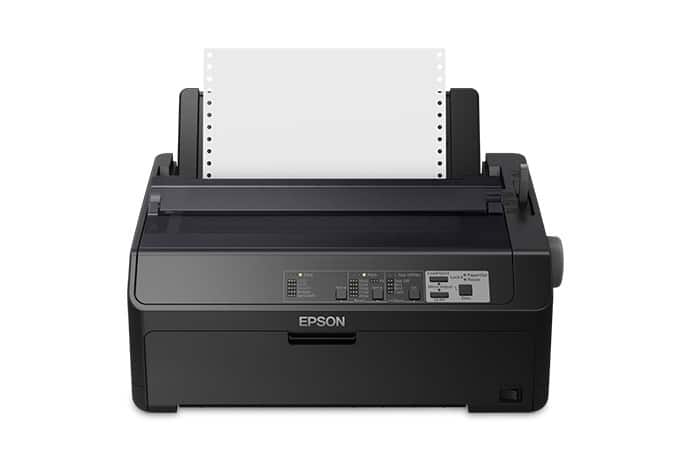

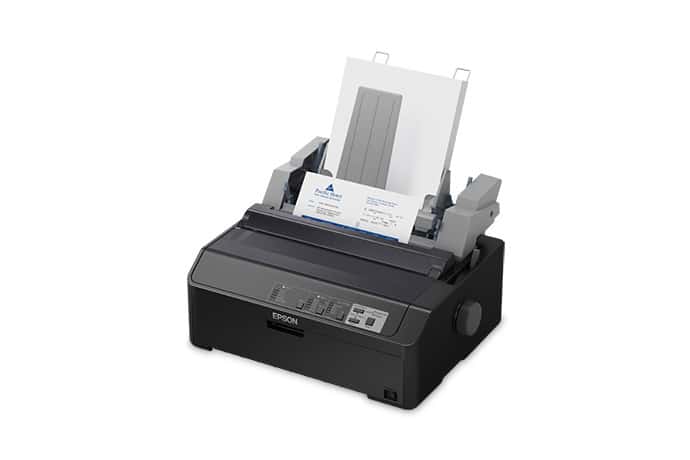

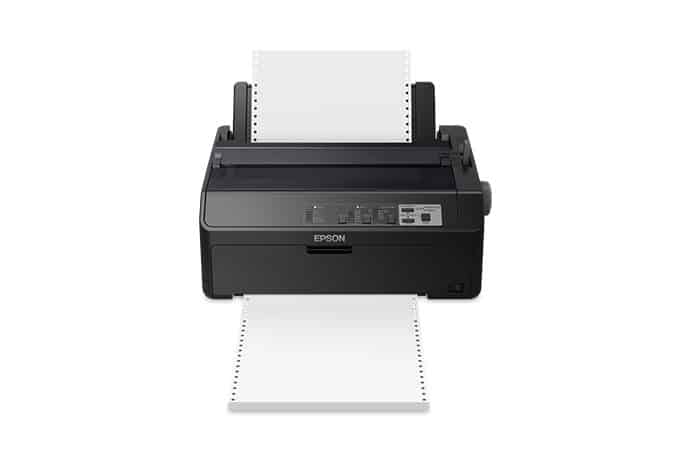

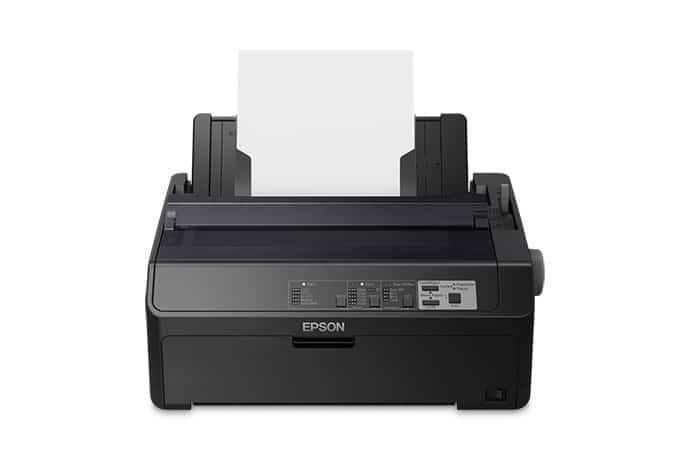

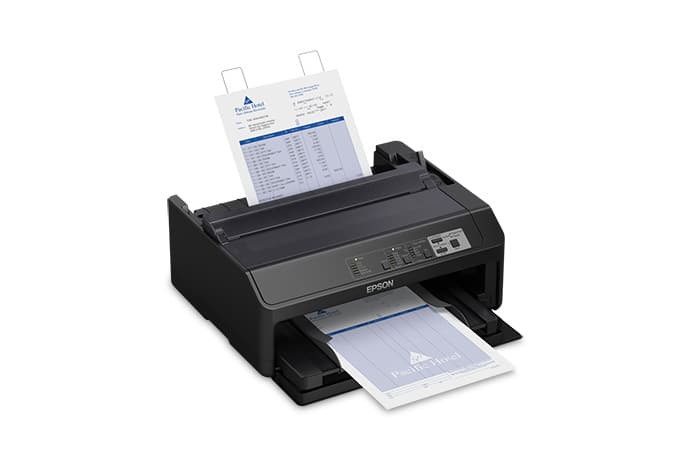

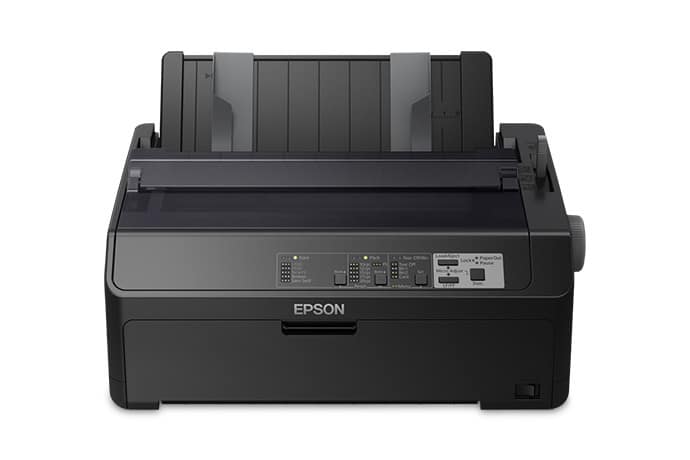

Epson FX-890II N Impact Printer

• Extreme Reliability: Long life cycle, rugged design, few moving parts, and built to withstand dust, humidity, and extreme temperatures.
• Low Cost of Ownership: Ribbon cartridge yields up to 7.5 million characters, reducing costs and user maintenance.
• High-Speed Performance: Ultra-fast 9-pin printing with speeds up to 738 cps for multipart forms and reports.
• Seamless Integration: Supports Epson ESC/P, IBM PPDS, and MICROLINE languages for compatibility with new and legacy systems.
• Advanced Paper Handling: Supports cut-sheet, continuous, multipart (up to 7 pages), envelopes, and labels with reliable paper paths.
• User-Friendly Operation: Intuitive control panel simplifies setup and configuration.
• Low Power Usage: ENERGY STAR® V2.0 compliant for energy-efficient operation.
• Network Ready: Ethernet-compatible with IPv6 support for easy integration into modern networks.

Eco Features

• RoHS compliant
• Recyclable product
• SmartWay® Transport Partner
• Better Products for a Better Future™
• Learn more: Epson Environmental Programs

What’s in the Box

• Epson FX-890II N Impact Printer
• Printer Driver
• Quick Installation Guide
• Power Cable

Technical Specifications

Printing Technology

• 9-pin, serial impact dot matrix
• Bidirectional logic seeking with software-selectable unidirectional mode

Print Speed (ISO)

• Ultra Speed Draft: 738 cps (12 cpi), 615 cps (10 cpi)
• High Speed Draft: 612 cps (10 cpi)
• Draft: 463 cps (10 cpi)
• Letter Quality: 115 cps (10 cpi)
• Note: Achieved with printer safety cover fully closed

Character Sets & Fonts

• 13 character tables, 13 international character sets
• Multiple resident bitmapped fonts: Draft, NLQ (Roman/Sans Serif), proportional
• Barcodes: EAN-13, EAN-8, UPC-A/E, Code 39/128, POSTNET, Codabar, and more
• Characters per line (10–20 cpi): 80–160
• Line Spacing: 6 lpi default; 1/6″ or programmable

Physical Specifications

• Dimensions: 16.3″ W x 13.8″ D x 6.6″ H
• Weight: 16.8 lbs
• Noise Level: 55 dB(A)

Paper Handling

• Supports cut sheets, continuous paper, envelopes, labels, and roll paper (optional)
• Multipart forms: 1 original + 6 copies
• Paper feed mechanisms: friction, push/pull tractor, roll holder
• Feed speed: 5.3″ per second (continuous); 45 ms per 1/6″
• Paper width: 3.9″ to 10.1″ (varies by feed type)
• Envelopes: No. 6 and No. 10 sizes

Connectivity & Control

• Interfaces: Parallel (IEEE 1284), USB 2.0, optional Serial and 10/100Base-TX Ethernet
• Input Buffer: 128 KB
• Control Panel: Font, pitch, pause, form feed, load/eject, micro adjust, and more

Software & OS Compatibility

• Driver support: Windows Vista, XP, 7, 8, 10; Windows Server 2003–2016

Reliability

• MTBF: 25,000 POH @ 25% duty cycle
• Total Print Volume: 52 million lines
• Print Head Life: 400 million characters (14 dots/char)
• Ribbon Yield: 7.5 million characters

Power Requirements

• Voltage: 100–240 V AC
• Frequency: 50–60 Hz
• Power Usage:
  • Operating: ~57 W
  • Ready: ~12 W
  • Sleep: <0.09 W (network model)
• ENERGY STAR® V2.0 certified

The Epson FX-890II N Network Impact Dot Matrix Printer is a reliable workhorse designed to keep pace with your business! Whether you’re managing stock reports, printing invoices, or need a printer with exceptional durability and efficiency, the FX-890II N is your go-to choice.
