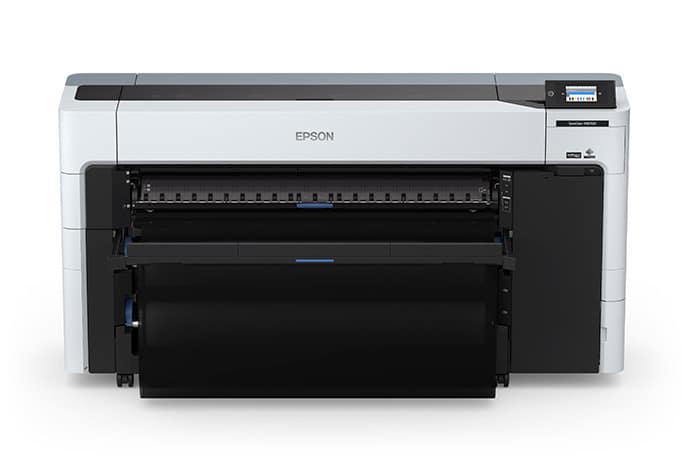

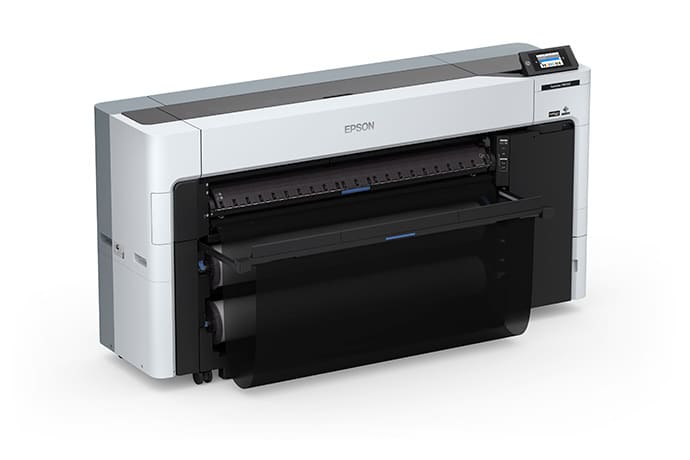

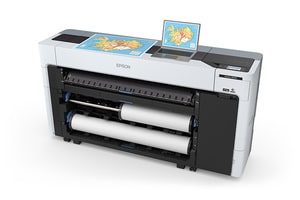

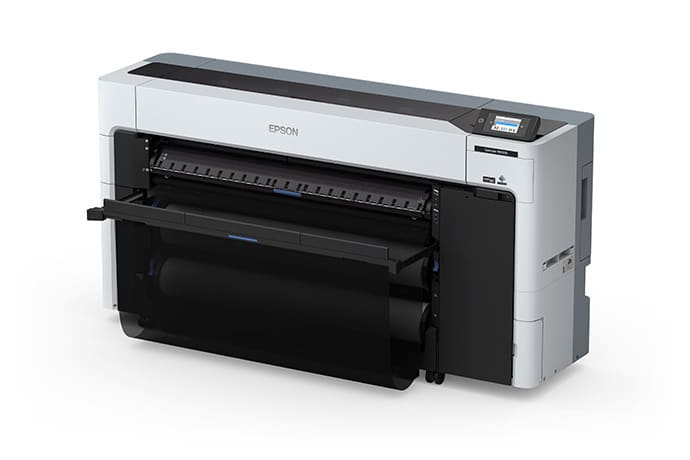

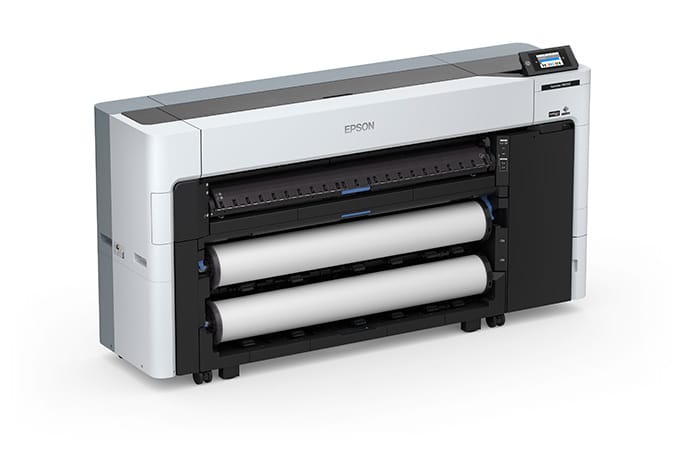

The Epson SureColor® P8570D redefines speed, performance, and image quality for professional photo and graphics printing. Featuring a 6-color UltraChrome® PRO6 pigment ink system, dual-roll media support, and a powerful PrecisionCore® MicroTFP printhead, this printer produces stunning photo-quality prints at remarkable speeds—all in a compact, front-operating design.

Key Features

• High-Speed Precision Printing: Up to 1,657 ft²/hr for plain paper; up to 206 ft²/hr for photo paper (quality mode).
• 6-Color UltraChrome® PRO6 Inks: Includes Cyan, Magenta, Yellow, Matte Black, Photo Black, and Gray for smooth gradients and neutral B&W prints that rival 8-color printers.

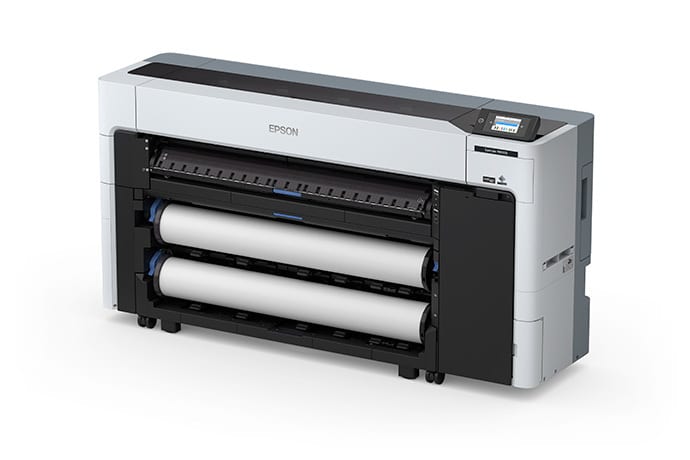

• Dual Roll Capability: Supports two rolls for automated media switching or roll-to-roll production with integrated take-up reel.
• Professional Media Handling: Supports cut sheets, photo paper, canvas, posterboard (up to 1.5 mm thick), and borderless printing up to 44″ wide.
• Adobe Embedded Print Engine: Natively processes JPG, TIFF, PDF, and PostScript® files for fast, accurate output.
• 4.3” Touchscreen Interface: Easy-to-use control panel with automated routine maintenance and self-service functions.
• Flexible Connectivity: SuperSpeed USB 3.0, Ethernet, Wi-Fi (2.4GHz & 5GHz), USB drive support, and optional 960GB SSD.
• Compact, Efficient Design: Front-loaded operation with zero assembly—ready to print in 30 minutes.
• Secure and Managed: Includes 28+ IT and security features including user authentication and encryption.

Print Performance

• Print Head: PrecisionCore MicroTFP 6-channel, 9600 nozzles
• Resolution: Up to 2400 x 1200 dpi
• Ink Droplet Size: 3.5 picoliters; 3 droplet sizes per line
• Real-Time Black Switching between Photo and Matte Black

Print Speeds

• Plain Paper: Draft: 1,657 ft²/hr
• Matte Paper: Speed: 589 ft²/hr
• Photo Paper: Speed: 381 ft²/hr; Quality: 206 ft²/hr; Max Quality: 94 ft²/hr

Ink Cartridge System

• Ink Type: UltraChrome PRO6 pigment-based
• Colors: C, M, Y, PK, MK, Gray
• In-box Cartridges: 240 mL per color (x6)
• Retail Options: 150 mL, 350 mL, or 700 mL
• Cartridge Shelf Life: 2 years sealed / 6 months opened

Media Handling

Roll Media

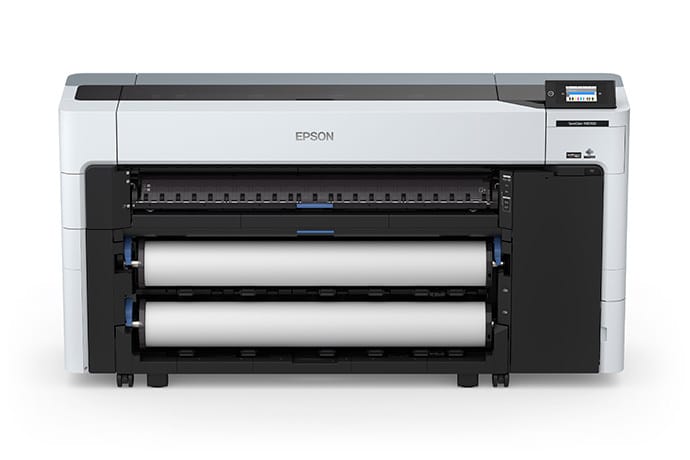

• Dual Front-Loading Rolls: 10″ to 44″ width
• Roll Diameter: Up to 6.69″
• Roll Weight: Up to 27 lb
• Media Thickness: 0.07 mm – 0.80 mm
• Roll Cutting: Internal rotary cutter, auto/manual
• BorderFree® Print Widths: 10″ to 44″ in preset sizes

Sheet Media

• Front or rear loading, up to 44″ width
• Min Sheet Width: 8″
• Posterboard: Up to 1.5 mm thick
• Line Accuracy: ±0.1% (±0.26 mm min.)
• Max Printable Length: 298′

Connectivity & OS Support

• Interfaces: USB 3.0, Gigabit Ethernet, 802.11 b/g/n/ac Wi-Fi, USB flash drive, optional SSD
• Supported OS: Windows XP – 10, Vista, Server 2003–2019; macOS 10.6.8 and later

Dimensions & Environmental

• Size: 73″ W x 20″ D x 39″ H
• Weight: 347.2 lbs
• Noise Level: 49.6 dBA
• Operating Temperature: 50–95 °F (10–35 °C)
• Recommended: 65–75 °F (18–24 °C)
• Humidity: Operating: 20–80%; Storage: 5–85%
• Power Consumption:
  • Print: 70 W
  • Ready: 32 W
  • Sleep: 2 W
  • Standby: 0.3 W

Eco Features

• ENERGY STAR® Certified
• RoHS Compliant
• Recyclable Design
• SmartWay® Transport Partner

What’s in the Box

• SureColor P8570D Printer with Adobe Embedded Print Engine
• Full Set of 240 mL Ink Cartridges (CMY Gray, PK, MK)
• 2 Installed Roll Media Adapters
• Preinstalled Maintenance Boxes
• Start Here Poster
• AC Power Cable
• Note: Media is not included

Accessories

• Replacement Cutter Blade – C13S210117
• Roll Feed Spindle – C12C936171
• Maintenance Box – C13S210115
• Borderless Maintenance Box – C13S210116
• Cleaning Stick – C13S090013
• 960GB SSD – C12C936671
• Production Stacker – C12C937131

Available Inks

110 mL UltraChrome PRO6 Ink

• Photo Black: T49A120
• Matte Black: T49A820
• Cyan: T49A220
• Magenta: T49A320
• Yellow: T49A420
• Gray: T49AE20

350 mL UltraChrome PRO6 Ink

• Photo Black: T48S120
• Matte Black: T48S820
• Cyan: T48S220
• Magenta: T48S320
• Yellow: T48S420
• Gray: T48SE20

700 mL UltraChrome PRO6 Ink

• Photo Black: T48L120
• Matte Black: T48L820
• Cyan: T48L220
• Magenta: T48L320
• Yellow: T48L420
• Gray: T48LE20

Warranty & Support

• Standard 1-Year On-Site Service (Next Business Day)
• Optional Extended Warranty: EPPP8570DS1 (stackable up to 4 years)
