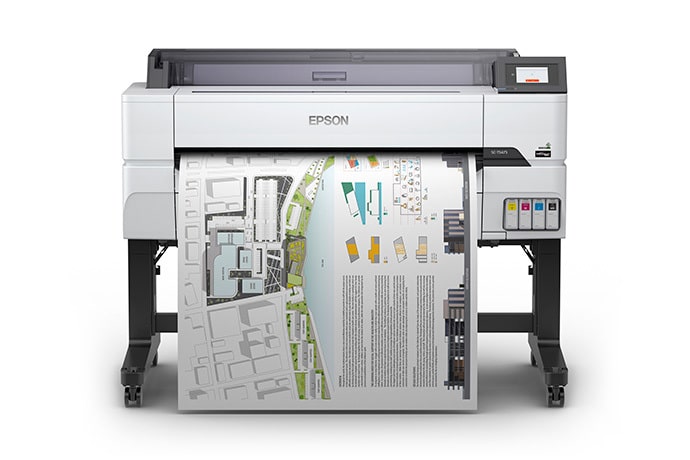

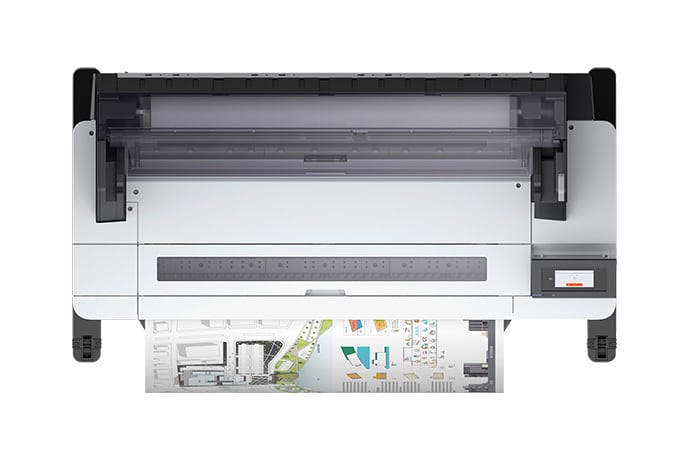

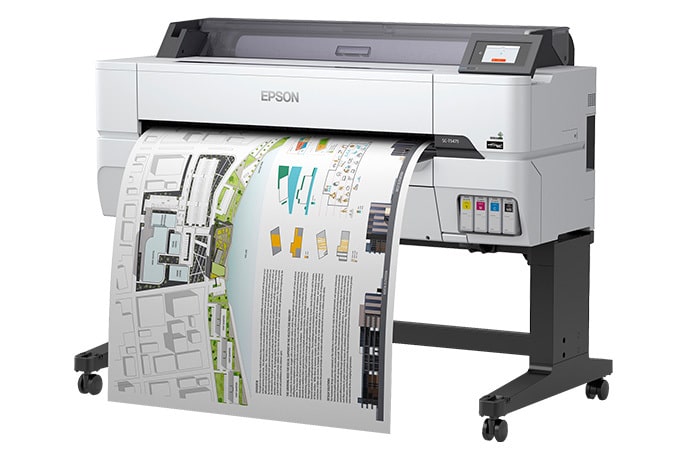

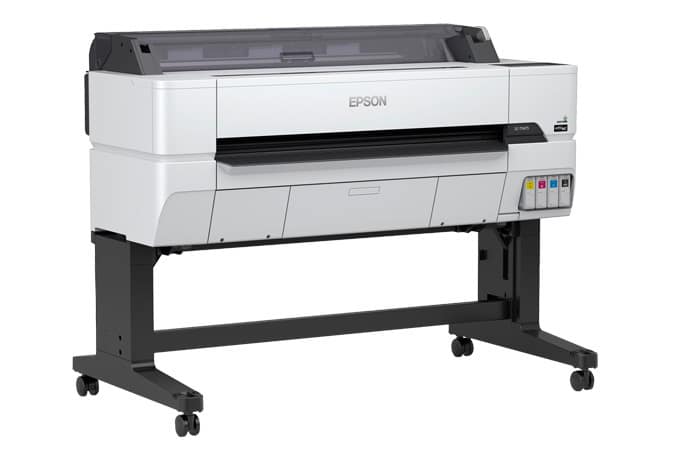

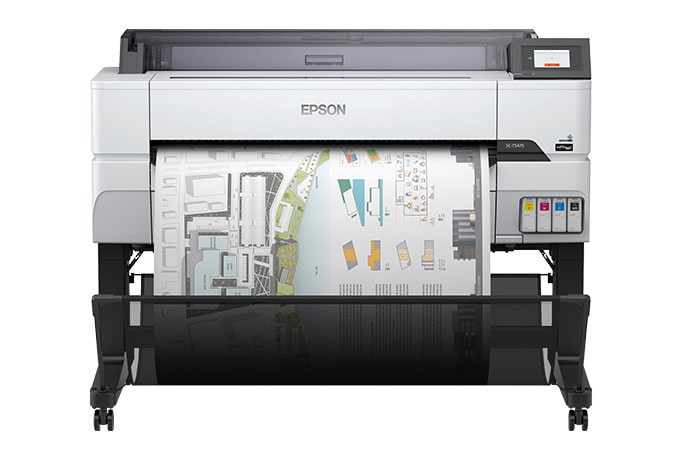

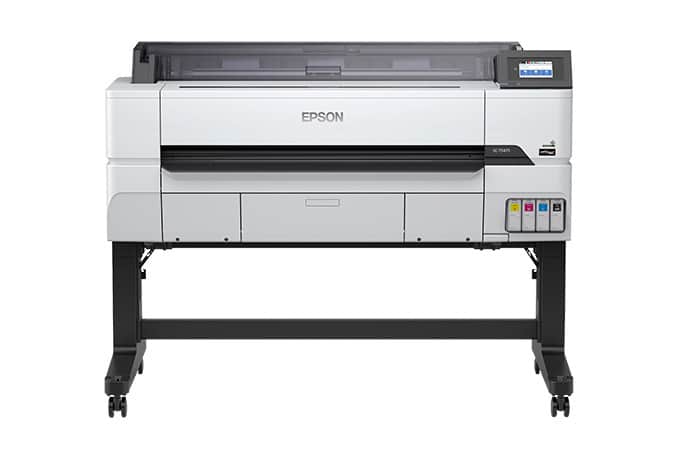

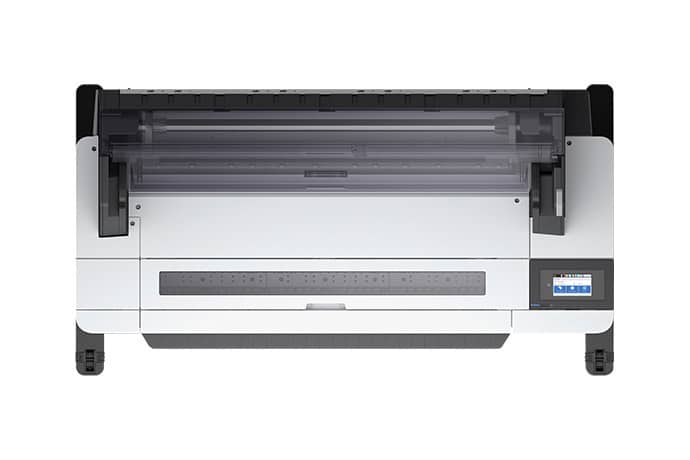

Epson SureColor T5475 Printer SCT5475SR

• 36-inch high-performance inkjet printer designed for precise, high-speed large-format printing.
• Ideal for printing blueprints, posters, CAD drawings, and technical documents in high-production environments.
• Combines advanced printhead technology, fast throughput, and a user-friendly interface in a robust chassis.
• Produces A1/D-size prints in as fast as 22 seconds, making it highly efficient for time-sensitive workflows.
• Equipped with a modern 4.3-inch color touchscreen for intuitive control and navigation.

Print Performance

• Features PrecisionCore MicroTFP 4-channel, drop-on-demand printhead technology for professional-grade output.
• Delivers a maximum resolution of 2400 x 1200 dpi for crisp lines, rich color, and precise detail.
• Supports variable-sized droplet technology, including a minimum droplet size of just 4 picoliters for fine print quality.
• Nozzle configuration includes 800 nozzles per channel across both color and monochrome heads.
• Utilizes UltraChrome XD2 pigment ink for water-resistant, smudge-proof, and durable results.

Connectivity and Interfaces

• Includes SuperSpeed USB 3.0, USB Direct for thumb drives, and Wi-Fi Direct for wireless printing without a router.
• Supports 802.11 b/g/n wireless LAN and wired Ethernet networking (1000Base-T, 100Base-TX, 10Base-T).
• Compatible with multiple printer languages: Epson ESC/P Raster, HP-GL/2, and HP RTL.
• Ensures compatibility with Windows XP through Windows 10 (32/64-bit) and macOS 10.7 through 10.13.
• Advanced security protocols integrated to safeguard sensitive data and documents.

Media Handling

• Supports cut-sheet and roll-fed media up to 36″ wide.
• Minimum paper sizes: 8.27″ wide for sheets, 10″ wide for roll media.
• Handles roll diameters up to 6.6″ using 2″ or 3″ core adapters.
• Accepts media up to 11.8 mil thick and supports automatic and manual roll cutting.
• BorderFree printing supported for a range of widths including 10″, 24″, and 36″.

Design and Environmental Specs

• Compact design for office settings, with full printer dimensions (with stand) of 55″ x 28″ x 42″.
• Total unit weight including stand is 168 lbs.
• Operates within a temperature range of 50°F to 95°F, and storage from -4°F to 104°F.
• Recommended humidity range for operation is 45% to 60% (non-condensing).
• Noise levels are approximately 50 dB(A) while printing and 32 dB(A) in sleep mode.
• ENERGY STAR certified and RoHS compliant for eco-conscious businesses.
• Typical power usage: 34W while printing, 13W in ready mode, and only 0.25W when powered off.

Accessories and Supplies

• Included in the Box:
  • SureColor T5475 Printer
  • Initial Ink Cartridges (Cyan, Magenta, Yellow, Black – 110 mL each)
  • Start Here Poster
  • User Guide
  • AC Power Cable

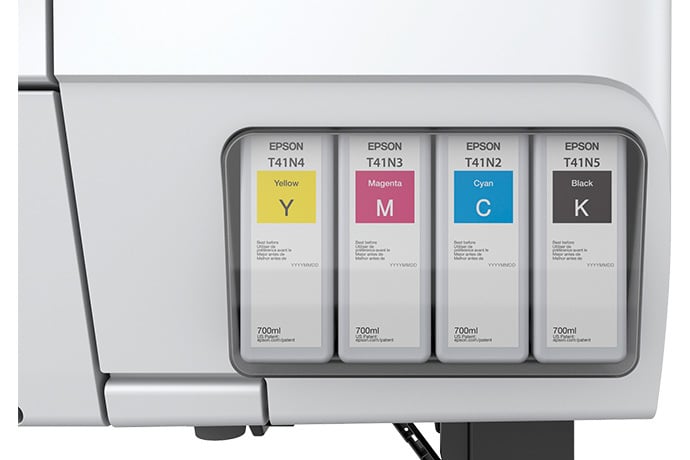

• Ink Options:
  • 110 mL Cartridges:
    • Cyan (T41W220), Magenta (T41W320), Yellow (T41W420), Black (T41W520)
  • 350 mL Cartridges:
    • Cyan (T41P220), Magenta (T41P320), Yellow (T41P420), Black (T41P520)
  • 700 mL Cartridges:
    • Cyan (T41N220), Magenta (T41N320), Yellow (T41N420), Black (T41N520)
• Extended Service Plans:
  • 1-Year Next-Business-Day On-Site Repair
  • 2-Year Next-Business-Day On-Site Repair
  • 4-Year Next-Business-Day On-Site Repair

Reliability and Warranty

• Backed by a 1-year limited warranty with next-business-day on-site repair support.
• Durable construction with Epson’s reliable permanent printhead design and automated nozzle checks.
• Designed and manufactured in Indonesia with UL, FCC, CSA, CE, and EMC certifications.
• Engineered for long-term performance in high-output business environments.
