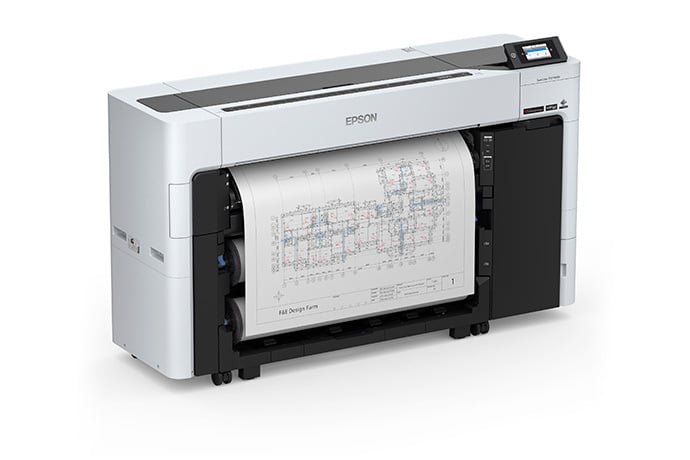

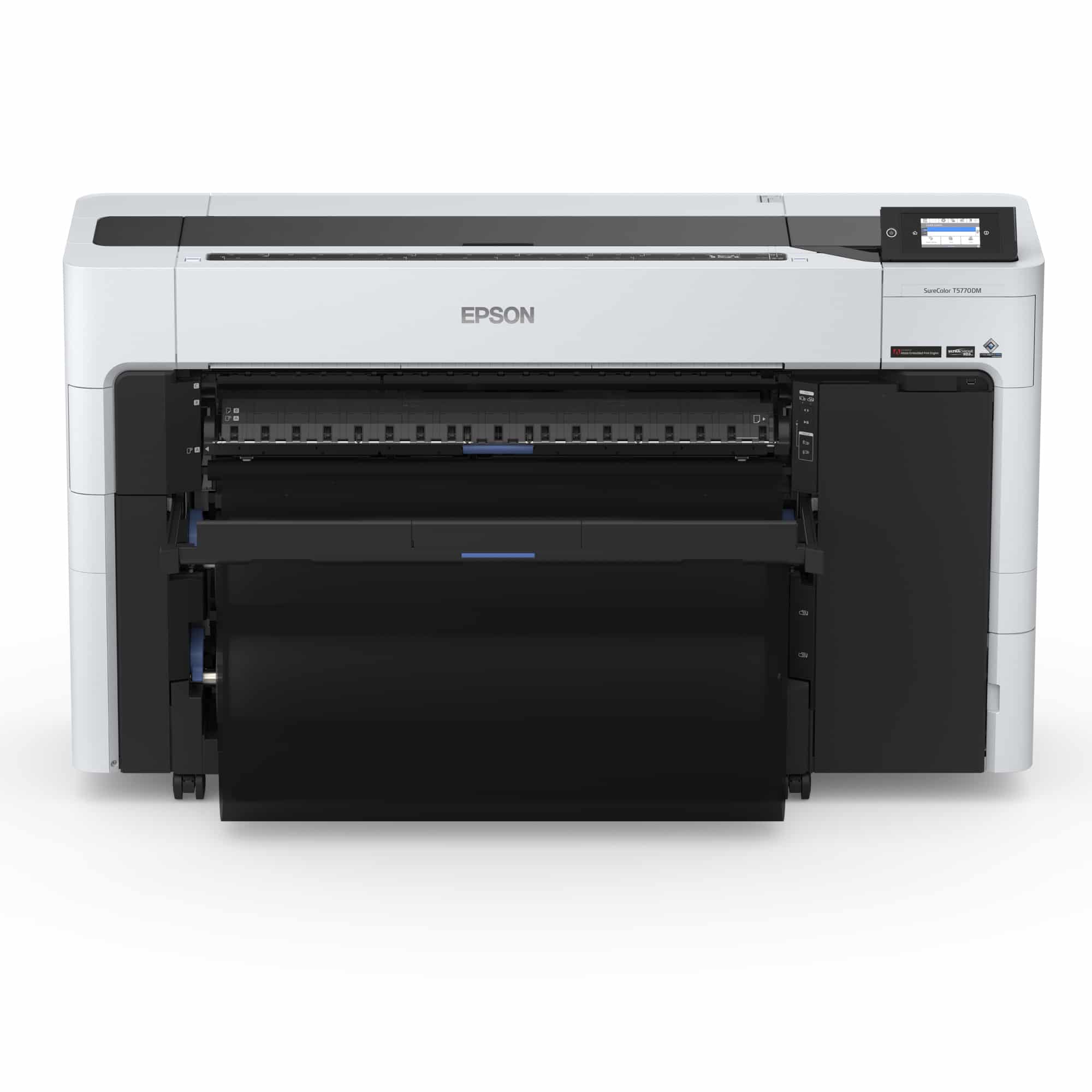

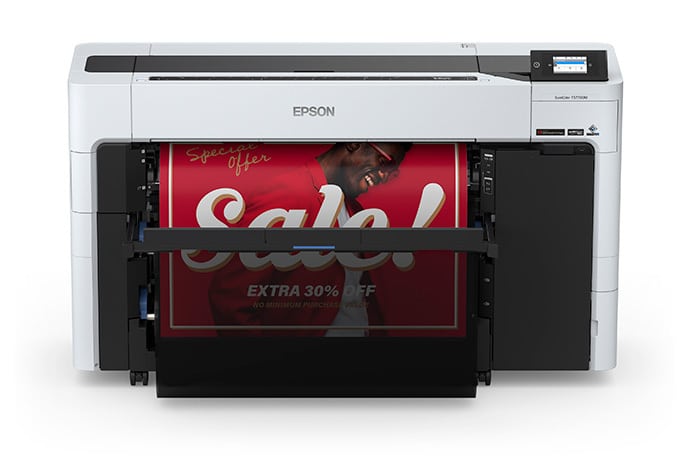

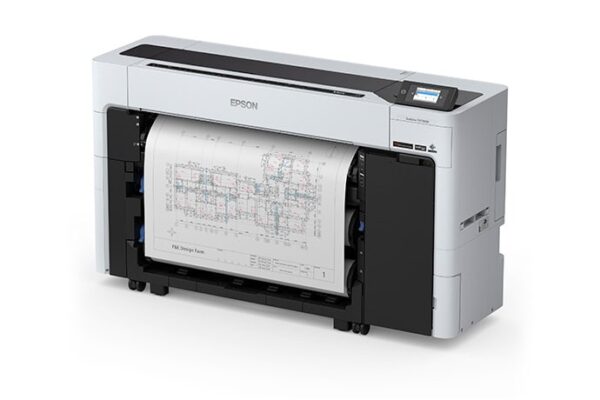

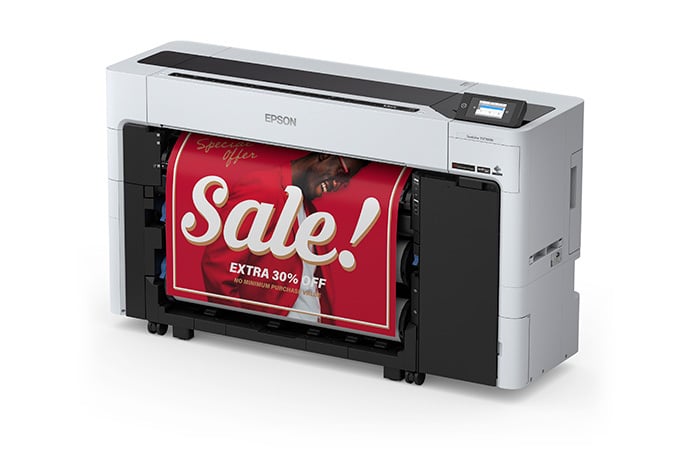

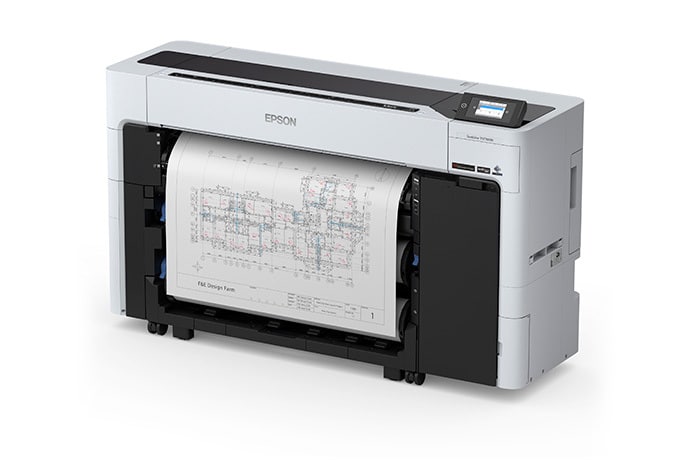

Epson SureColor T5770DM 36-Inch Large-Format Multifunction CAD/Technical Printer SCT5770DM

Name: Epson SureColor T5770DM 36-Inch Large-Format Multifunction CAD/Technical Printer [SCT5770DM] - Your Printer Toner Store
SKU: SCT5770DM
Price: 9385.85 USD
Availability: InStock

Epson – SURECOLOR T5770DM 36-INCH LARGE-FORMAT MULTIFUNCTION CAD/TECHNICAL PRINTER

SureColor T5770DM 36″ Dual Roll Printer with Integrated Scanner

The SureColor T5770DM is a versatile, 36-inch wide-format printer and scanner designed to meet the demands of technical printing applications such as CAD, engineering, and architectural designs. With its dual-roll functionality, integrated scanner, and high-speed printing capability, the T5770DM offers exceptional performance, making it an ideal choice for businesses requiring fast, precise, and high-quality document processing.

Key Features

High-Speed Printing: Prints A1/D-size documents in as fast as 16 seconds, ensuring rapid production of CAD drawings, blueprints, and technical documents.
Integrated 36″ Wide Scanner: The dual-light source scanner can capture documents up to 36″ wide at resolutions up to 600 dpi, reducing the appearance of wrinkles for precise reproductions.

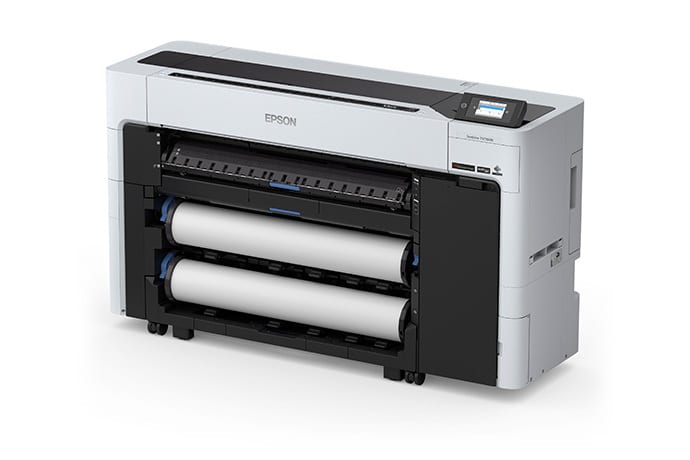

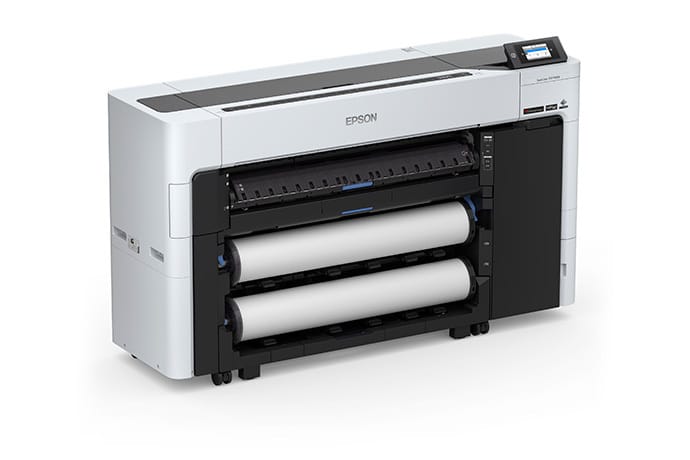

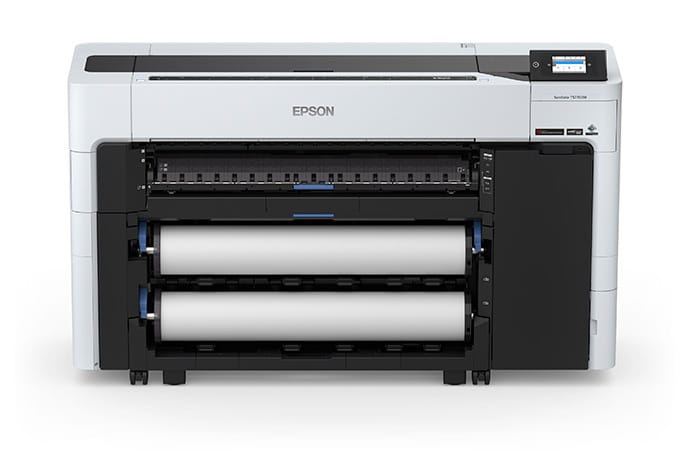

Innovative Design: Features a flattop, space-saving design with front operation and automatic dual-roll loading, making it easy to switch between media types or use the second roll as a take-up reel.
Stunning Image Quality: Equipped with UltraChrome XD3 inks, including Red Ink, for vivid color output, crisp lines, and long-lasting prints that are resistant to water, smudges, and fading.
Versatile Media Support: Accommodates a wide range of media types, including glossy, technical, bond, matte, and rigid posterboard up to 1.5 mm thick, providing flexibility for various applications.
PrecisionCore Technology: The 2.64″ PrecisionCore Micro TFP printhead ensures high resolution and detail, with a maximum resolution of up to 2400 x 1200 dpi for superior quality prints.
Fast Scanning Speeds: Scan speeds of up to 10 inches per second (ips) for black-and-white documents and up to 4.5 ips for color documents, ideal for quick file digitization.
Easy-to-Use Touchscreen: Includes a 4.3-inch articulating touchscreen control panel for intuitive navigation and control of print, scan, and copy functions.

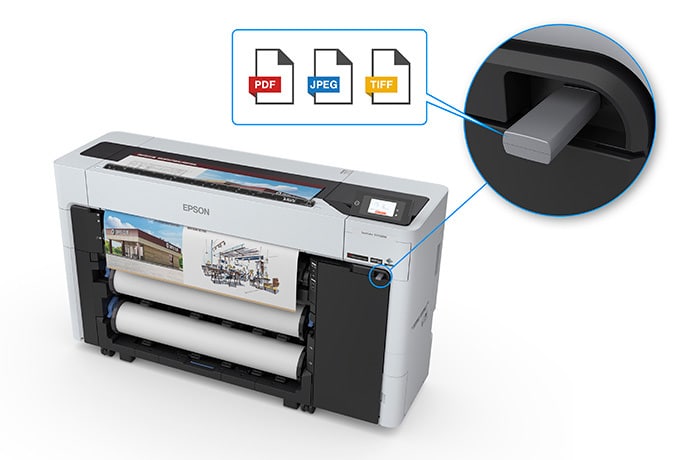

Mobile and Cloud Printing: Wireless connectivity allows users to print directly from mobile devices, cloud services, and USB drives using Wi-Fi Direct®, without the need for a router.
Enterprise-Level Security: Supports secure printing and scanning of PDFs, and includes options for scanning to USB drives, shared network folders, and mobile devices.

Technical Specifications

Printing Technology: PrecisionCore Micro TFP 6-channel printhead with drop-on-demand technology and UltraChrome XD3 pigment inks (Cyan, Magenta, Yellow, Red, Matte Black, and Photo Black).
Print Resolution: Capable of printing with a maximum resolution of 2400 x 1200 dpi, ensuring sharp, detailed output for technical and graphics applications.
Print Speed: Prints A1/D-size documents in as fast as 16 seconds on plain paper, with support for faster or slower modes depending on media type.
Scanner Resolution: The integrated scanner offers up to 600 dpi scan resolution, providing high-quality, accurate reproductions of scanned documents.
Scan Speed: Up to 10 ips for monochrome and 4.5 ips for color scanning, making it efficient for large-format scanning projects.
Media Handling: Supports two media rolls, accommodating widths up to 36 inches and media thicknesses between 0.07 mm and 0.8 mm, with the ability to print on posterboard up to 1.5 mm thick.
Connectivity Options: Includes SuperSpeed USB 3.0, Gigabit Ethernet, and Wi-Fi connectivity (2.4 GHz and 5 GHz), along with support for USB memory sticks and mobile printing.
Memory: Equipped with 6 GB of printer memory and 3 GB of scanner memory, ensuring smooth and efficient processing of complex print and scan jobs.

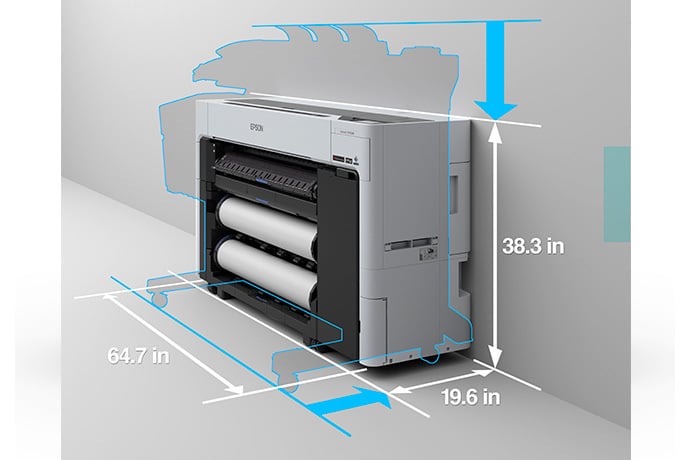

Dimensions: 65″ W x 20″ D x 39″ H (with the paper basket extended); the printer weighs 331 lbs, making it a durable and stable option for large-format printing environments.
Power Consumption: Approx. 90 W during printing, 44 W in ready mode, and only 2 W in sleep mode, ensuring energy efficiency in compliance with ENERGY STAR® standards.

Available Accessories

UltraChrome XD3 Ink Cartridges: Available in 110 mL, 350 mL, and 700 mL sizes for Cyan, Magenta, Yellow, Red, Matte Black, and Photo Black, ensuring flexibility for various print needs.
Replacement Cutter Blade (C13S210117): Ensures clean, accurate cuts for high-volume print jobs, making it an essential accessory for busy environments.
Maintenance Box (C13S210115): Collects excess ink to keep the printer running smoothly, reducing the need for frequent maintenance.
Borderless Maintenance Box (C13S210116): An essential accessory for managing excess ink during borderless printing.
36″ Additional Roll Feed Spindle (C12C937671): Facilitates faster media changes by allowing pre-loading of additional media rolls, improving overall efficiency.
Cleaning Stick (C13S090013): Helps maintain the printer in top condition by ensuring the printhead remains clean and free of blockages.

Why Choose the SureColor T5770DM?

High Productivity: With fast print and scan speeds, the SureColor T5770DM ensures maximum productivity in high-demand technical printing environments, such as architecture, engineering, and construction.
Space-Saving Design: The compact, flattop design with front operation and dual-roll integration allows for easy access and media handling without increasing the printer’s footprint.
Durable and Reliable: Built with Epson’s PrecisionCore technology and UltraChrome XD3 inks, the printer delivers consistent, long-lasting, water-resistant, and smudge-proof prints.
Enhanced Media Flexibility: Supports a wide variety of media types and thicknesses, allowing users to print everything from technical drawings and CAD renderings to posters and signage with ease.
Environmentally Friendly: ENERGY STAR® certified with low power consumption and designed with sustainable features, the T5770DM is a responsible choice for eco-conscious businesses.

The SureColor T5770DM is an ideal solution for businesses requiring a high-performance, multifunction printer and scanner that delivers excellent print quality, fast scanning speeds, and versatile media handling. With its compact design, enhanced security features, and advanced connectivity options, this printer is perfect for fast-paced environments that require reliability, precision, and flexibility.
