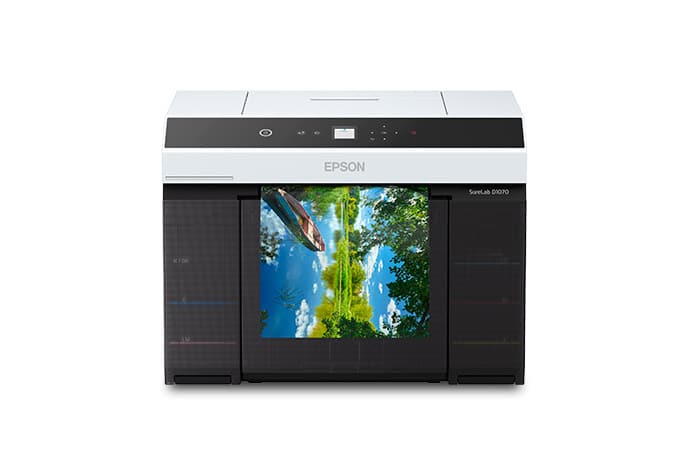

Epson SureLab D1070 Professional Minilab Printer [SLD1070SE]

Overview

The Epson SureLab® D1070 is a compact, high-performance minilab photo printer engineered for professional photographers, photo booths, and event printing. With advanced image processing and high-capacity ink packs, it offers exceptional print quality and production efficiency.

• Photographic Quality: MicroPiezo® AMC printhead and AccuPhoto™ technology deliver rich, smudge-, water-, and fade-resistant photos using 6-color UltraChrome® D6r-S dye ink
• Production-Class Speeds: Up to 460 prints/hour (4″ x 6″), 300/hour (5″ x 7″), 165/hour (8″ x 10″)
• Cartridge-Free Printing: High-capacity 250 mL ink packs reduce waste and lower operating costs
• Compact & Efficient: Integrated output tray and small footprint make it ideal for tight workspaces

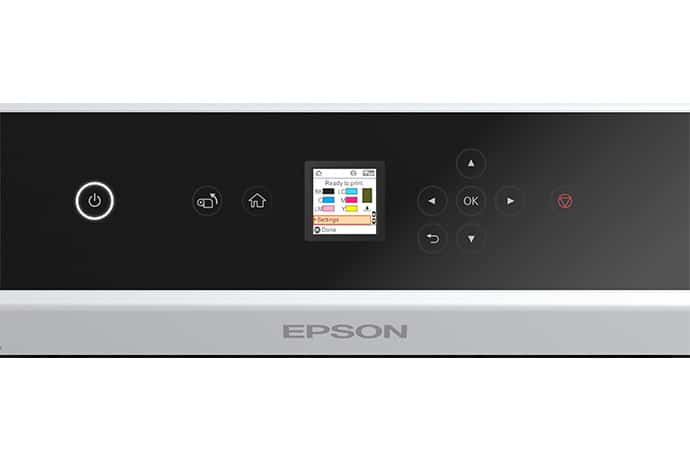

• Enhanced Usability: Front-facing 1.44″ LCD screen, auto nozzle alignment, and nozzle detection minimize downtime
• Flexible Connectivity: Wi-Fi®, Ethernet, and USB support plus redesigned drivers for Windows® and macOS®
• Advanced Workflow: Supports ICC color profiles, Adobe® RGB, sRGB, and Epson Cloud Solution PORT4 for fleet monitoring
• Versatile Media Handling: Supports glossy, matte, luster, and thick card media; borderless and cut-sheet capable

Print Specifications

• Technology: Advanced MicroPiezo AMC printhead
• Ink Type: 6-color UltraChrome D6r-S dye-based (C, LC, M, LM, Y, K)
• Ink Capacity: 250 mL per color
• Nozzle Configuration: 180 nozzles per color
• Droplet Size: Minimum 2.5 picoliters; supports variable droplet sizes
• Max Resolution: 1440 x 720 dpi
• Print Speeds: 4″ x 6″ in 7.8 sec (720 x 360 dpi), or 10.0 sec (720 x 720 dpi)

Media Handling

• Roll Media Widths: 3.5″, 4″, 5″, 6″, 8″, 8.3″
• Max Length: Up to 39.3″
• Roll Core: 3″
• Print Margins: Borderless or application-defined
• Finish Types: Glossy, Luster, Matte
• Auto Cutter: Yes

Connectivity & Control

• Hi-Speed USB 3.0
• 100Base-T Ethernet
• Wi-Fi®: 2.4 GHz (802.11n) and 5 GHz (802.11ac)
• 1.44″ color LCD control panel

Photographic Workflow Support

• Epson Professional Imaging RGB Driver
• Print Modes: High-Speed (720 x 360 dpi), Standard (720 x 720 dpi), High-Quality (1440 x 720 dpi)
• ICC profile workflow, Adobe RGB and sRGB modes supported
• Compatible with standard raster-based imaging software (Windows & Mac)

System Compatibility

• Windows 10, 8.1, 8, 7 (32-bit & 64-bit)
• macOS 10.6.8 or later

Physical Specs

• Dimensions: 18.1″ W x 14.7″ D x 13.5″ H
• Weight: 38.3 lb (without paper and ink)
• Noise: < 49 dB(A) operating, < 38 dB(A) sleep

Environmental Specs

• Operating Temp: 50° to 95° F (10° to 35° C)
• Storage Temp: -4° to 104° F (-20° to 40° C)
• Humidity: 20%–80% (operating), 5%–85% (storage, no condensation)
• Power Consumption: Approx. 80 W (operating)
• Electrical: 100–240V, 50–60 Hz

What’s Included

• SureLab D1070 Printer
• Spindle Unit
• Maintenance Cartridge
• AC Power Cable
• User Guide Kit (Documentation and Warranty)
• Note: Ink packs sold separately

Eco Features

• ENERGY STAR® qualified
• RoHS compliant
• End-of-life recycling options available

Ordering Information

• Printer Model: SureLab D1070 – SLD1070SE
• Maintenance Cartridge – C13S400086
• Spindle Unit – C12C935981
• Optional Duplex Feeder – C12C936001
• Ink Packs (250 mL each):
  • Cyan – C13T46J220
  • Magenta – C13T46J320
  • Yellow – C13T46J420
  • Light Cyan – C13T46J520
  • Light Magenta – C13T46J620
  • Black – C13T46J120

Warranty & Service

• Standard: 1-Year Limited Warranty (U.S. & Canada)
• Extended Service Options:
  • 1-Year Next-Business-Day Exchange – PSSLD1000E1
  • 2-Year Next-Business-Day Exchange – PSSLD1000E2
  • 4-Year Next-Business-Day Exchange – PSSLD1000E4
