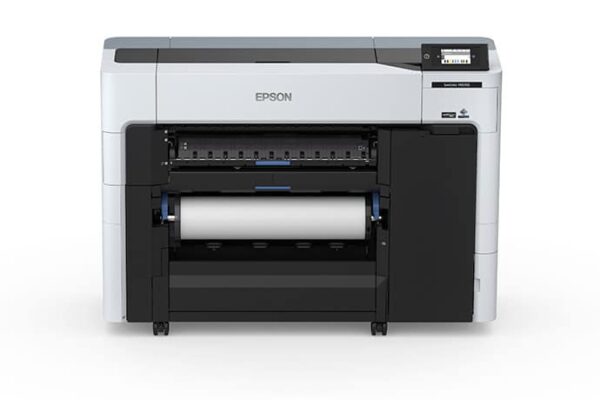

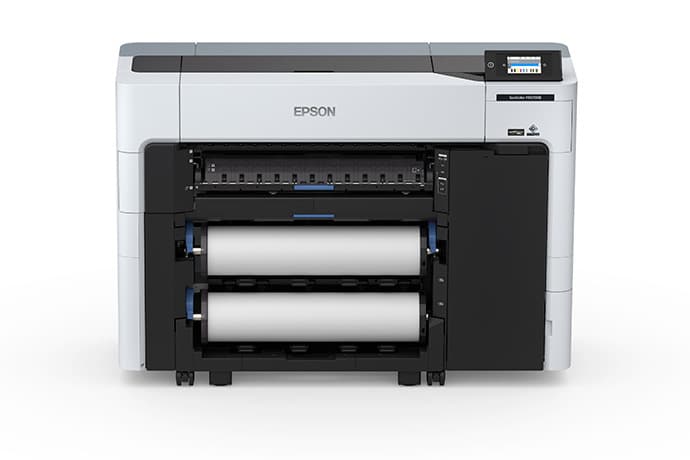

Epson SureColor P6570DE 24-Inch Wide-Format Dual-Roll Printer SCP6570EDR

• Innovative, flat-top design with complete front operation for seamless workflow integration
• Dual-roll system with automatic switching or take-up reel functionality
• Compact and wall-adjacent placement capability, ideal for small workspaces
• UltraChrome PRO6 ink system delivers stunning color and monochrome prints
• Print on diverse media types, including photo, fine art, canvas, and rigid posterboard
• No assembly required – setup in under 30 minutes
• Wireless, USB 3.0, and Gigabit Ethernet connections supported
• Includes Epson’s advanced software suite and Epson Cloud Solution PORT for remote management

Image Quality & Performance

• Uses UltraChrome PRO6 pigment inks with Gray for smooth gradations and neutral black-and-white output
• PrecisionCore MicroTFP printhead delivers fast and precise prints at up to 2400 x 1200 dpi
• Dedicated matte and photo black channels for seamless black ink switching
• High-speed production: up to 1,220 sq ft/hr on plain paper and up to 298 sq ft/hr on premium glossy
• Variable droplet technology with minimum droplet size of 3.5 picoliters for fine detail

Media Handling

• Dual 10″–24″ front-loading rolls with user-adjustable spindles (2″ or 3″ core)
• Supports media thickness from 0.07 mm up to 1.5 mm (posterboard)

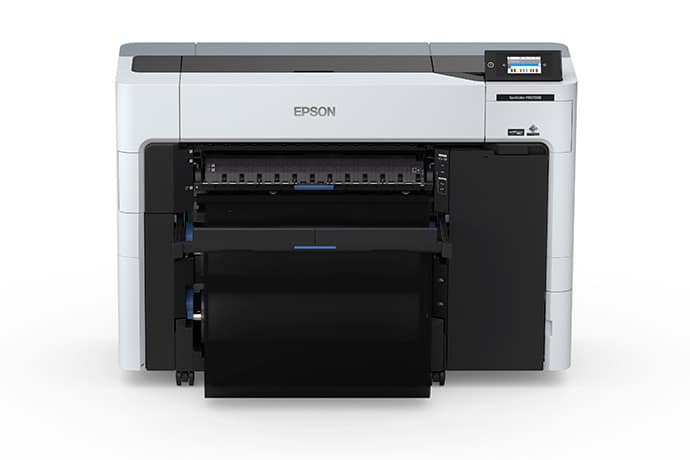

• Integrated take-up reel with forward and backward motion for roll-to-roll production
• Supports borderless printing at common widths: 10″, 13″, 14″, 17″, 20″, 24″
• Single-sheet front or rear loading supported up to 24″ wide
• Built-in high-speed rotary cutter for automatic or manual cuts
• Real-time barcode tracking for roll media usage visibility

Usability & Connectivity

• 4.3″ articulating touchscreen for intuitive printer operation
• Compatible with macOS (10.9.5+) and Windows (XP to 10, Server 2003–2019)
• Interfaces include USB 3.0, Ethernet, Wi-Fi (2.4/5 GHz), and USB memory stick
• Optional 960 GB SSD for local storage and faster access to print jobs

Environmental and Safety Compliance

• ENERGY STAR qualified and RoHS compliant
• Low power consumption: 75 W printing, 0.3 W in standby
• Noise level: 49.6 dBA during operation
• Temperature range: Operating 50–95°F, Storage -4–104°F
• Humidity range: Operating 20–80%, Storage 5–85% (non-condensing)

Accessories and Consumables

• Included:
  • Printer unit
  • Initial ink cartridges (240 mL x 6 colors)
  • 2 roll media adapters
  • Maintenance boxes (preinstalled)
  • Start Here poster and power cable
• Optional Accessories:
  • Replacement rotary cutter blade
  • Additional 24″ roll spindle
  • Maintenance boxes (standard and borderless)
  • Cleaning sticks
  • 960 GB SSD memory unit
  • 24″ production stacker
• Ink Cartridge Options:
  • 110 mL: Cyan, Magenta, Yellow, Photo Black, Matte Black, Gray
  • 350 mL: Same colors
  • 700 mL: Same colors
• Service Plans:
  • 1, 2, or 4-year Next-Business-Day On-Site Repair options
  • Extendable up to 5 years continuous coverage

Printer Specifications

• Print resolution: 2400 x 1200 dpi
• Nozzle configuration: 9,600 total (400 per channel x 24 channels)

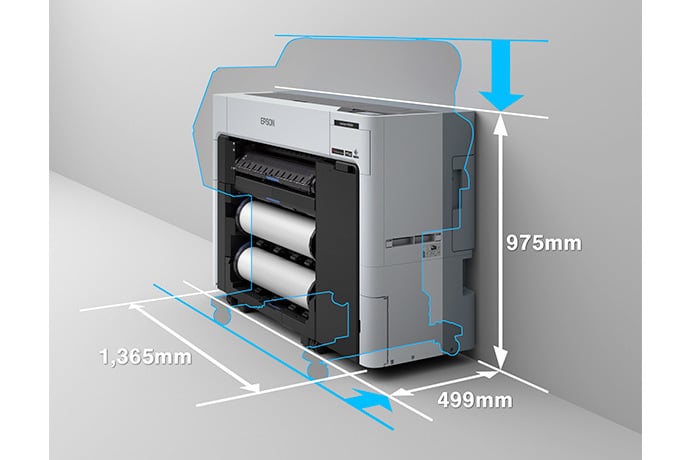

• Dimensions: 54″ W x 20″ D x 38.4″ H (storage); 54″ W x 33″ D x 38.4″ H (with basket extended)
• Weight: 260 lb
• Power requirements: 110–240 V, 50/60 Hz, 1.6–3.4 A
