Key Features

• Incredible Print Speeds – CAD and technical drawings at production-class speeds over 1,400 sq ft/hr; posters and POP displays over 300 sq ft/hr.
• PrecisionCore® 2.6-inch Printhead – Industry-leading performance with fine detail and crisp lines.
• UltraChrome XD3 Pigment Ink with Red – Produces vivid color graphics and precise line detail for CAD, GIS, and display applications.

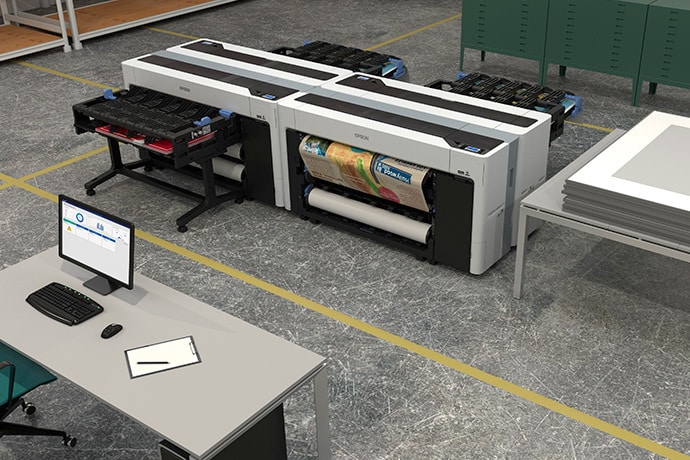

• Dual-Roll Productivity – Print with two media types or sizes simultaneously; use second roll as a take-up reel for roll-to-roll production.
• Wide Media Compatibility – Supports glossy, technical, bond, matte, specialty media, and rigid poster board up to 1.5 mm thick.
• Adobe Embedded Print Engine – 3x faster PDF data processing with superior accuracy for layered and complex files.

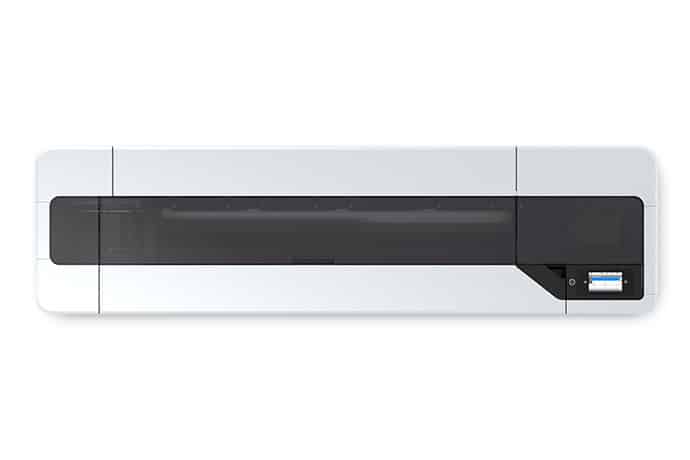

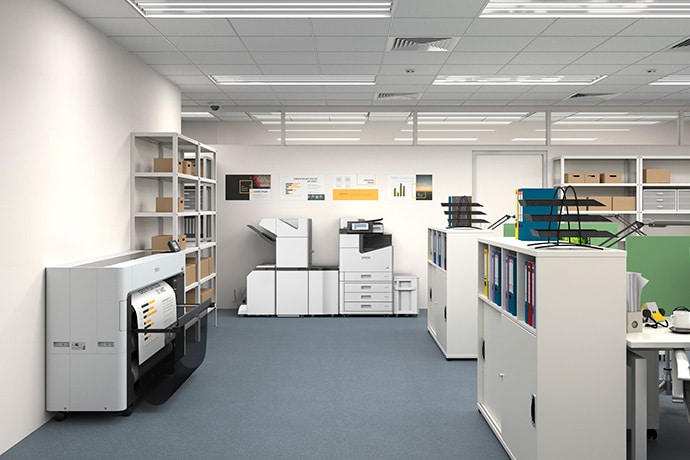

• Space-Saving Design – Up to 25% smaller than competing models, with a flat-top and complete front operation.
• Versatile Connectivity – USB 3.0, Gigabit Ethernet, and dual-band Wi-Fi (2.4 GHz & 5 GHz).

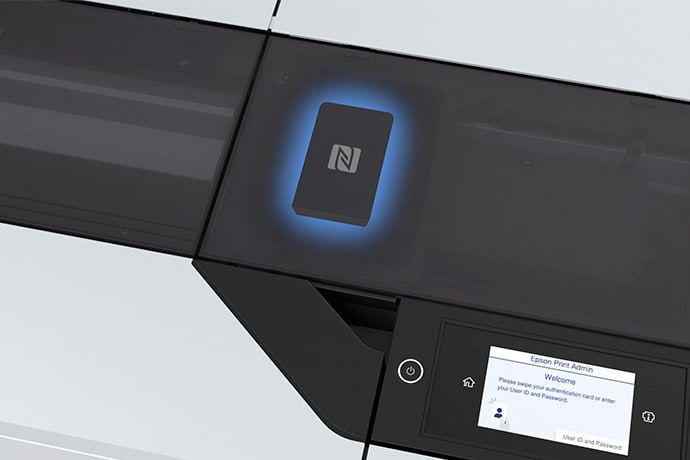

• Enhanced Security – Over 28 IT and security features including IC card control, SSD encryption, and IEEE 802.1x support.

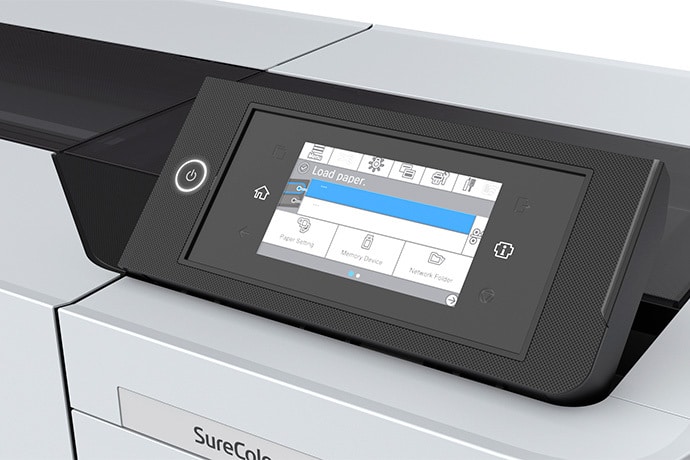

• Convenient Operation – 4.3-inch color touchscreen with automated maintenance and user self-service.

Technical Specifications

• Printing Technology: PrecisionCore MicroTFP, 6-channel.
• Ink Type: UltraChrome XD3 pigment ink, 6 colors (C, M, Y, R, Matte Black, Photo Black).
• Nozzles: 9,600 nozzles total (1,600 × 6 channels).
• Resolution: Up to 2400 × 1200 dpi.
• Print Speeds: A1/D size print in 16 seconds; CAD plain paper >1,400 sq ft/hr; Posters >300 sq ft/hr.
• Media Width: 10″ – 44″; supports rigid poster board up to 1.5 mm thick.

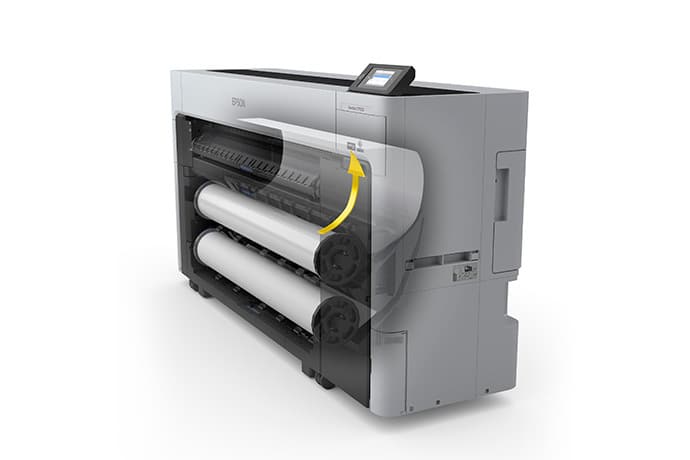

• Roll System: Dual roll with automatic switching and take-up reel.
• Ink Cartridge Sizes: 110 mL, 350 mL, 700 mL options.
• Memory: 4 GB built-in.
• Interfaces: USB 3.0, Ethernet, Wi-Fi, USB memory stick, optional 960 GB SSD, RFID card reader.

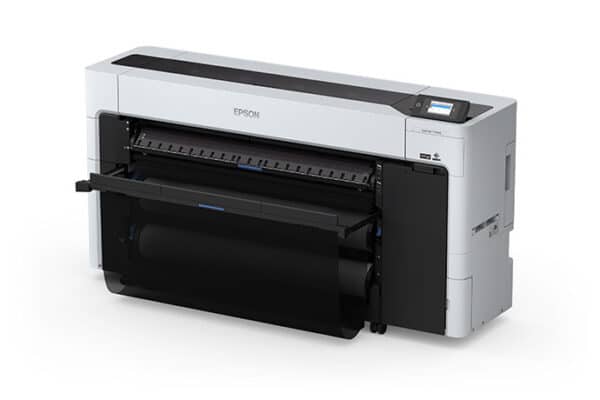

• Dimensions: 73″ × 20″ × 39″ (standard), 73″ × 32″ × 39″ (with basket extended).
• Weight Capacity: Roll weight up to 27 lb; max diameter 6.69″.
• Noise Level: Approx. 49.6 dB(A) operating.
• Eco Features: ENERGY STAR® qualified, RoHS compliant, recyclable product.

What’s in the Box

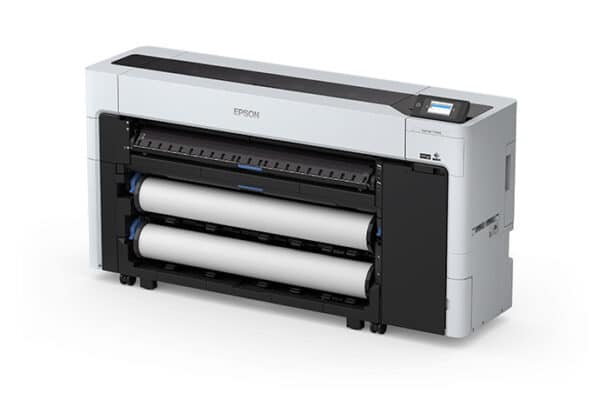

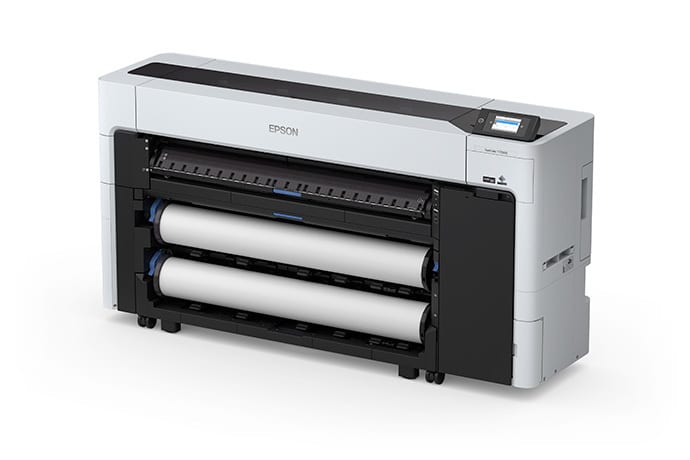

• SureColor T7770D Printer (SCT7770DR)
• Full set of initial 240 mL ink cartridges (C, M, Y, R, MK, PK)
• Maintenance Box (pre-installed)
• Borderless Maintenance Box
• Two Roll Media Adapters (pre-installed)
• AC Power Cable
• Setup documentation

Accessories & Supplies

• Replacement Printer Cutter Blade – C13S210117
• Additional Roll Feed Spindle (44″) – C12C936171
• Maintenance Box – C13S210115
• Borderless Maintenance Box – C13S210116

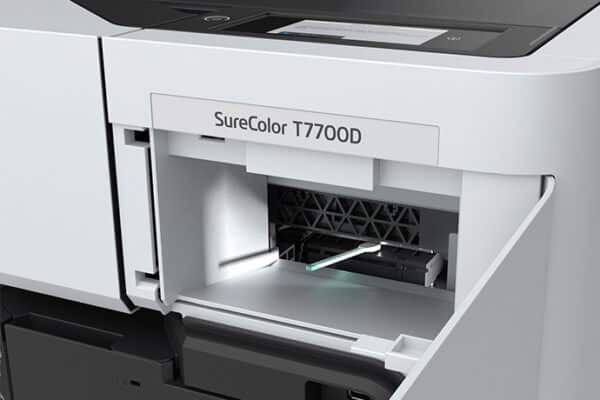

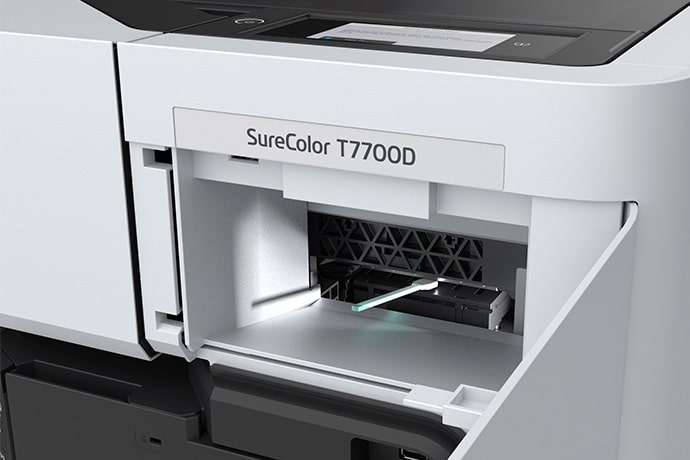

• Cleaning Stick – C13S090013
• 960 GB SSD Memory Unit – C12C936671
• Production Stacker (44″ wide) – C12C937131

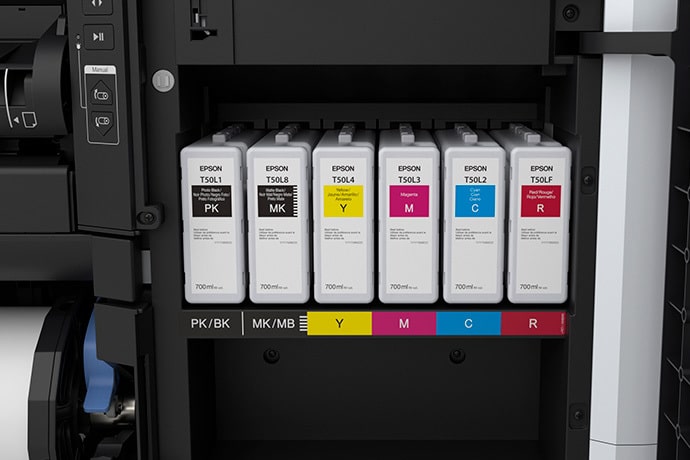

UltraChrome XD3 Ink Cartridges

• 110 mL: Cyan T51A220, Magenta T51A320, Yellow T51A420, Matte Black T51A820, Photo Black T51A120, Red T51AF20
• 350 mL: Cyan T50S220, Magenta T50S320, Yellow T50S420, Matte Black T50S820, Photo Black T50S120, Red T50SF20
• 700 mL: Cyan T50L220, Magenta T50L320, Yellow T50L420, Matte Black T50L820, Photo Black T50L120, Red T50LF20

Ordering & Warranty

• SureColor T7770D Printer – SCT7770DR
• Extended Epson Preferred Plus Service Plans – EPPT7770DS1 (stackable up to 4 additional years)

Includes a standard one-year limited warranty with next-business-day on-site repair and phone support. Extended service coverage available.
