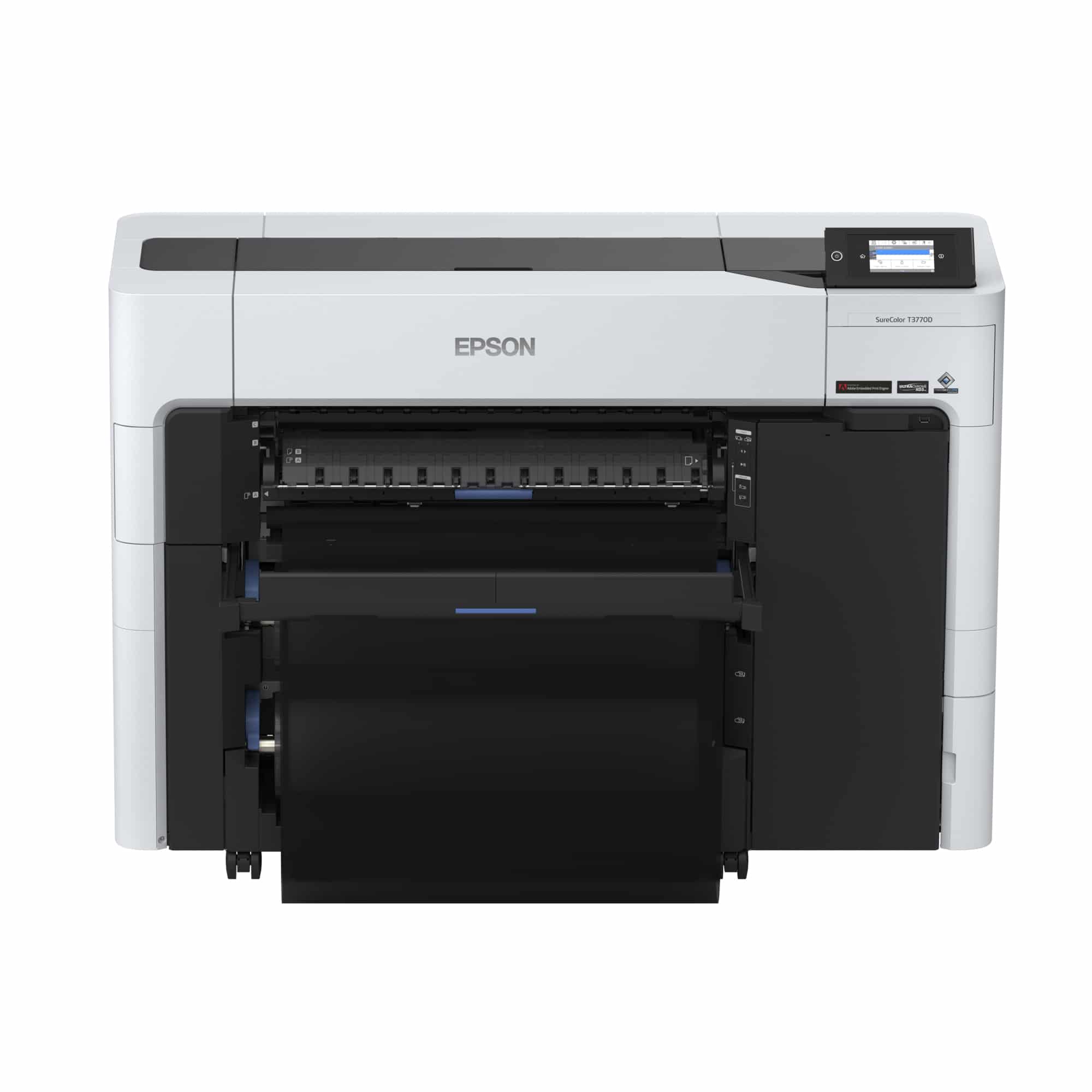

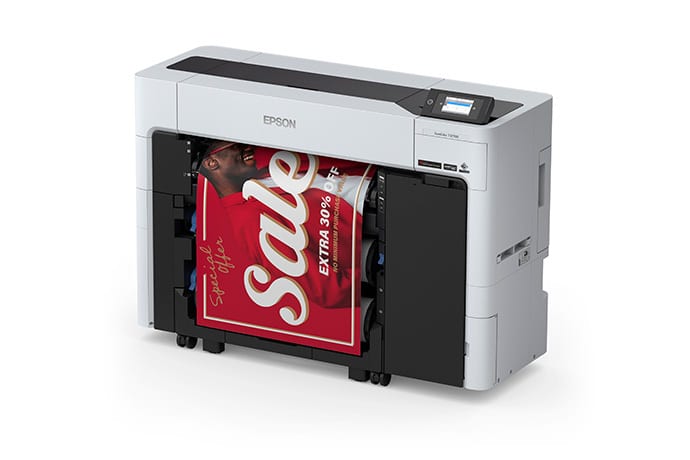

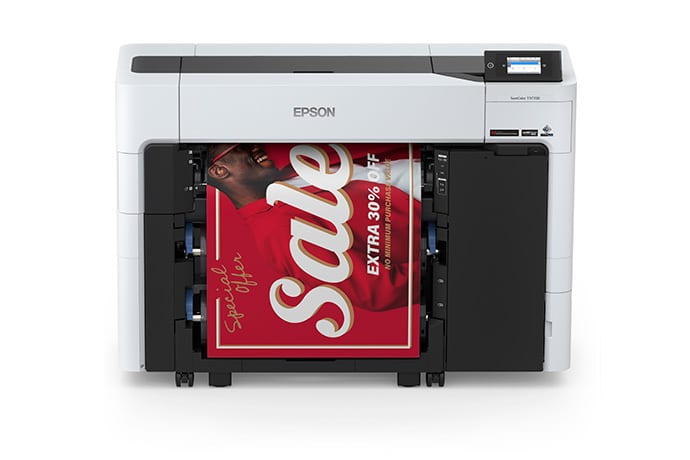

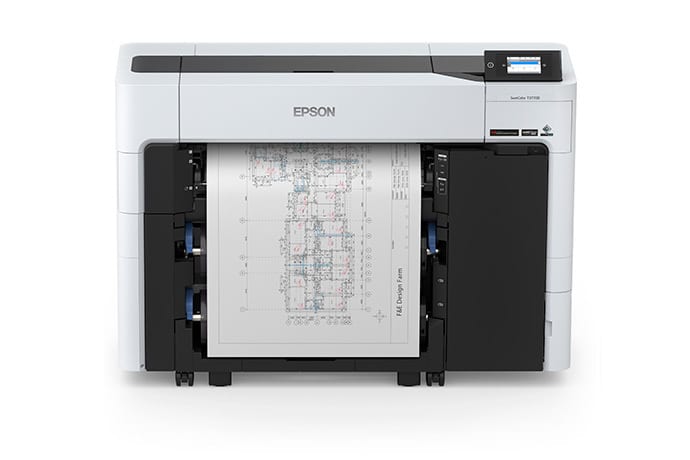

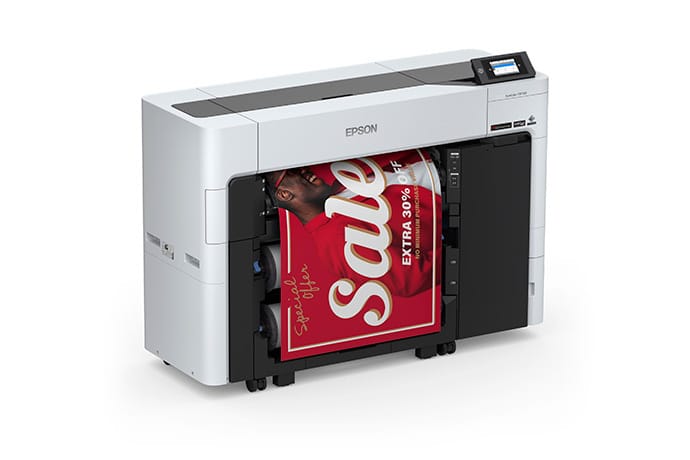

Epson SureColor® T3770DR – 24-Inch Dual Roll CAD/Technical Printer

The Epson SureColor T3770DR is a compact yet powerful 24-inch dual roll large-format printer built for technical drawings, CAD files, corporate graphics, signage, and posters. Powered by Epson’s PrecisionCore® 2.64-inch printhead and UltraChrome® XD3 pigment inks with red, it delivers incredible print quality with blazing-fast speed. With dual roll productivity, Adobe® Embedded Print Engine, and enterprise-grade security features, the T3770DR is designed to enhance workflows in architecture, engineering, and business environments.

Key Features

• High-Speed Performance – A1/D-size prints in just 16 seconds with precision and detail.
• PrecisionCore® Printhead – 2.64-inch Micro TFP printhead delivers superior quality and durability.
• UltraChrome® XD3 Inks with Red – Produces vibrant colors and crisp lines for both graphics and technical work.
• Adobe® Embedded Print Engine – Standard inclusion for native PDF and PostScript processing.
• Dual Roll Flexibility – Load two media types or sizes; second roll can be used as a take-up reel for roll-to-roll output.
• Broad Media Support – Print on glossy, matte, technical, bond, and specialty media, plus rigid posterboard up to 1.5 mm thick.
• Easy to Use – Configurable 4.3-inch color touchscreen for intuitive operation and maintenance.
• Fast Setup – Requires no assembly; ready to print in as little as 30 minutes.
• Connectivity Options – USB 3.0, Gigabit Ethernet, and dual-band Wi-Fi (2.4 & 5 GHz).
• Advanced Security – Over 28 IT and network security features including IC card user authentication, SSD encryption, and IEEE 802.1x.
• Fleet Management – Epson Software Suite and Cloud Solution PORT® enable remote monitoring and management.

Technical Specifications

• Print Technology: PrecisionCore Micro TFP, 6-channel.
• Ink Type: UltraChrome XD3 pigment ink, 6 colors (C, M, Y, R, Matte Black, Photo Black).
• Nozzle Configuration: 9,600 total nozzles (1,600 × 6).
• Resolution: Up to 2400 × 1200 dpi.
• Print Speed: A1/D plain paper print in 16 seconds; glossy in 65 seconds (speed mode).
• Media Handling: Dual rolls up to 24″ wide; supports posterboard up to 1.5 mm thick.
• Roll System: Automatic roll switching; take-up reel included.
• Ink Cartridge Sizes: Available in 110 mL, 350 mL, and 700 mL options.
• Memory: 4 GB built-in.
• Interfaces: USB 3.0, Ethernet, Wi-Fi, USB memory stick, optional 960 GB SSD, RFID card reader.

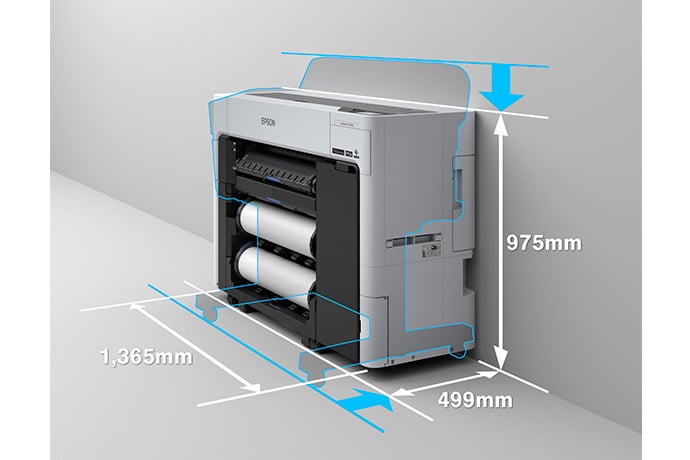

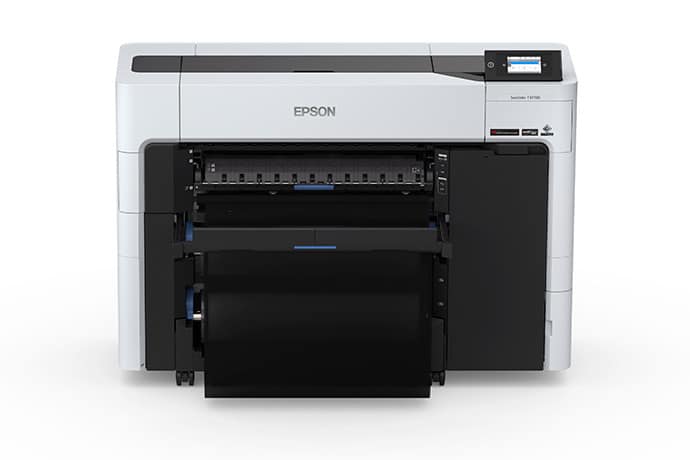

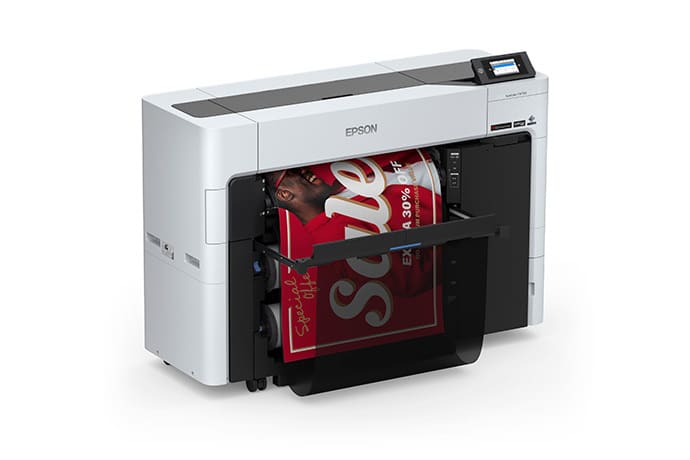

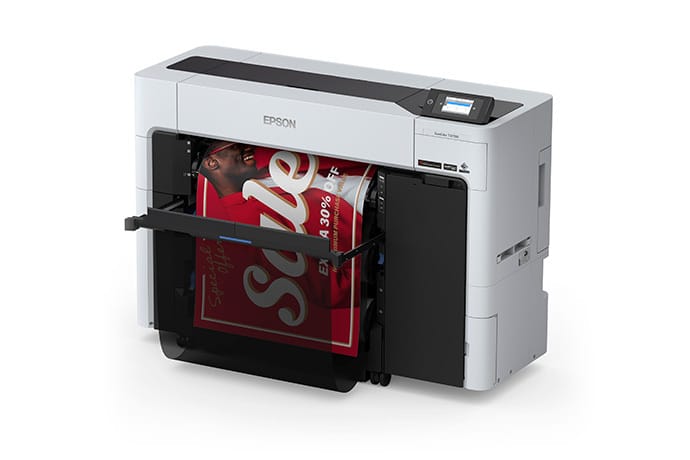

• Dimensions: 54″ × 20″ × 39″ (standard); 54″ × 33″ × 39″ (with basket extended).
• Weight: 261 lb.
• Noise Level: 49.6 dB(A) operating.
• Eco Features: ENERGY STAR® qualified, RoHS compliant, end-of-life recycling options.

What’s in the Box

• SureColor T3770DR Printer (SCT3770DR)
• Initial UltraChrome XD3 Ink Cartridges (240 mL C, M, Y, MK, PK, R)
• Maintenance Box (pre-installed)
• Borderless Maintenance Box
• Two Roll Media Adapters (pre-installed)
• AC Power Cable
• Setup materials and poster

Accessories & Supplies

• Replacement Printer Cutter Blade – C13S210117
• Additional Roll Feed Spindle (24″) – C12C937711
• Maintenance Box – C13S210115
• Borderless Maintenance Box – C13S210116
• Cleaning Stick – C13S090013
• 960 GB SSD Memory Unit – C12C936671

UltraChrome XD3 Ink Cartridges

• 110 mL: Cyan T51A220, Magenta T51A320, Yellow T51A420, Matte Black T51A820, Photo Black T51A120, Red T51AF20
• 350 mL: Cyan T50S220, Magenta T50S320, Yellow T50S420, Matte Black T50S820, Photo Black T50S120, Red T50SF20
• 700 mL: Cyan T50L220, Magenta T50L320, Yellow T50L420, Matte Black T50L820, Photo Black T50L120, Red T50LF20

Ordering & Warranty

• SureColor T3770DR Printer – SCT3770DR
• 1-Year Next-Business-Day On-Site Repair – PST3700S1
• 2-Year Next-Business-Day On-Site Repair – PST3700S2
• 4-Year Next-Business-Day On-Site Repair – PST3700S4

Includes a one-year limited warranty with on-site repair, usually next-business-day. Extended service plans available for up to four years.
