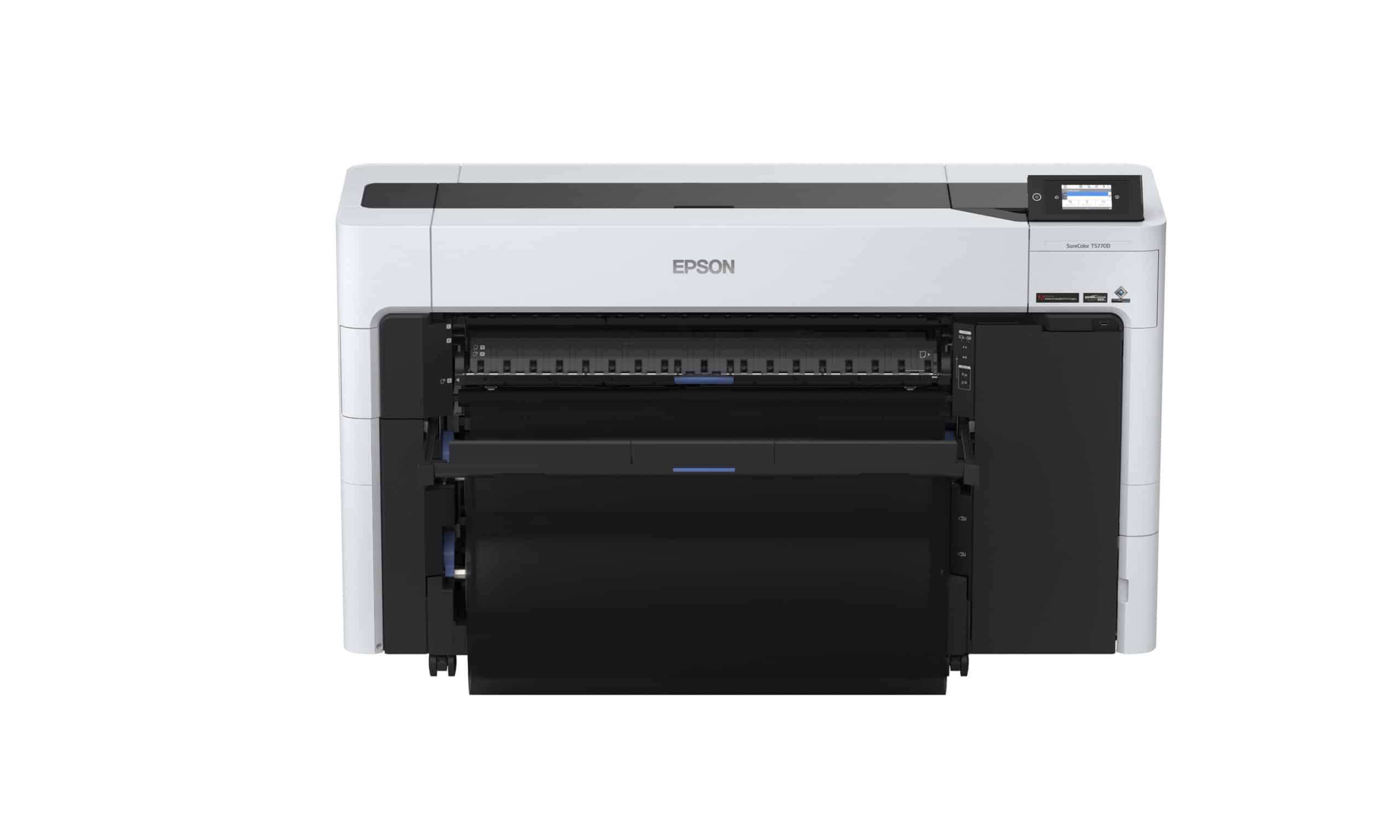

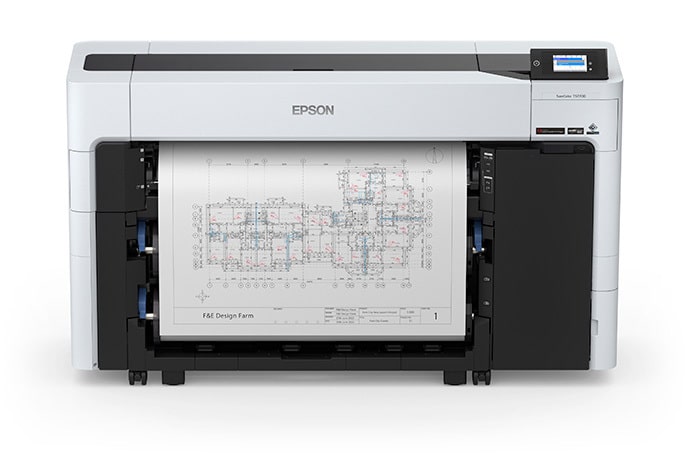

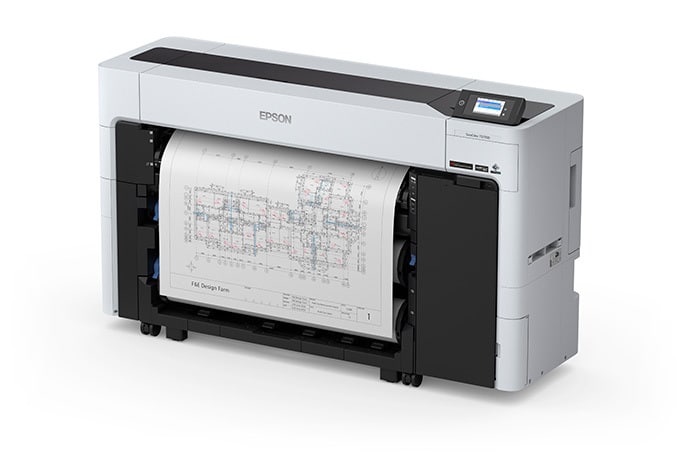

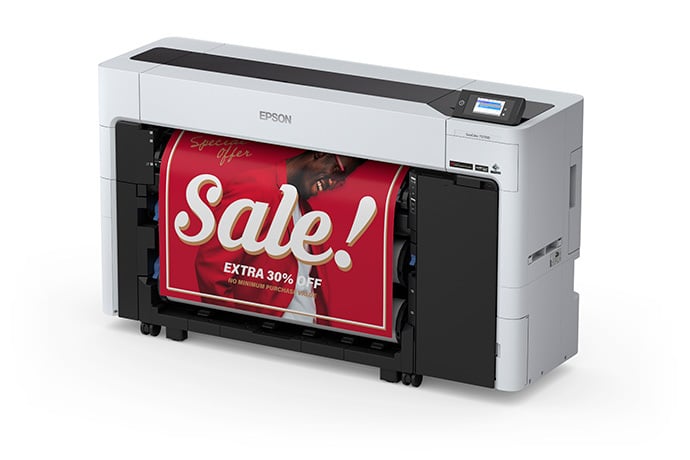

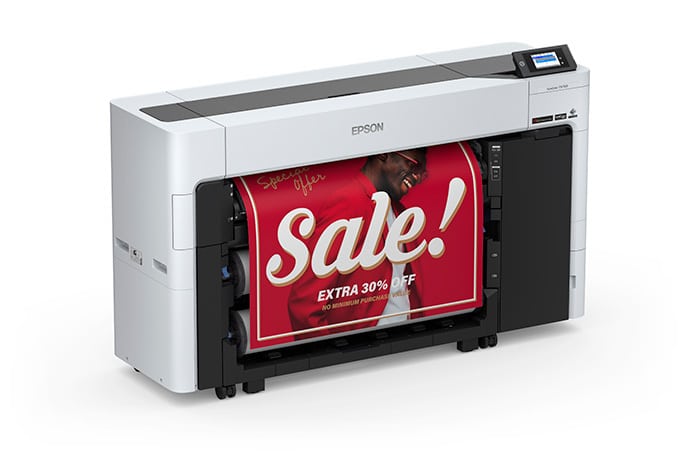

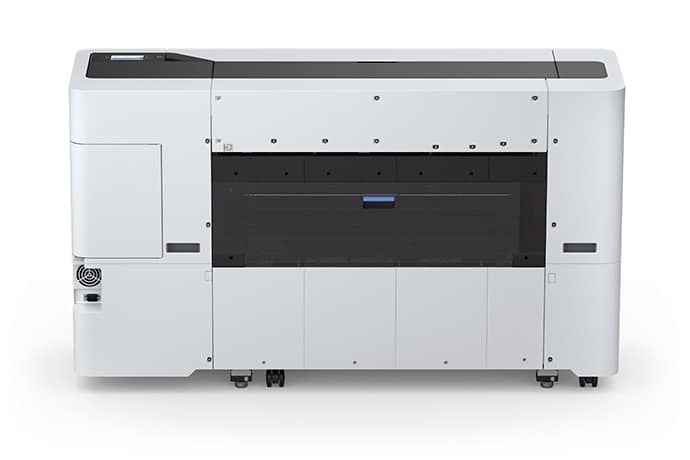

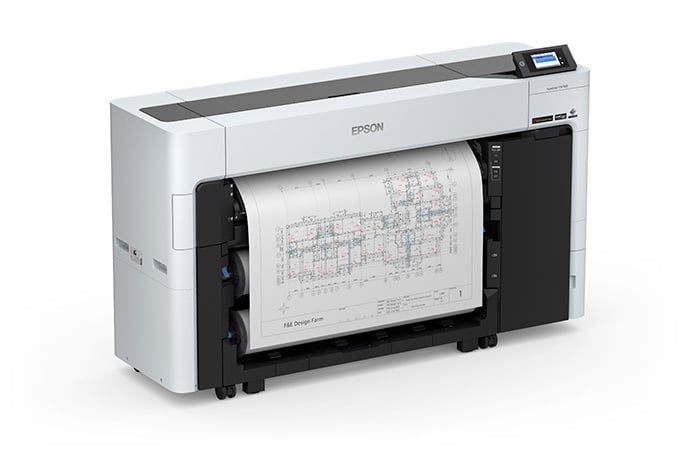

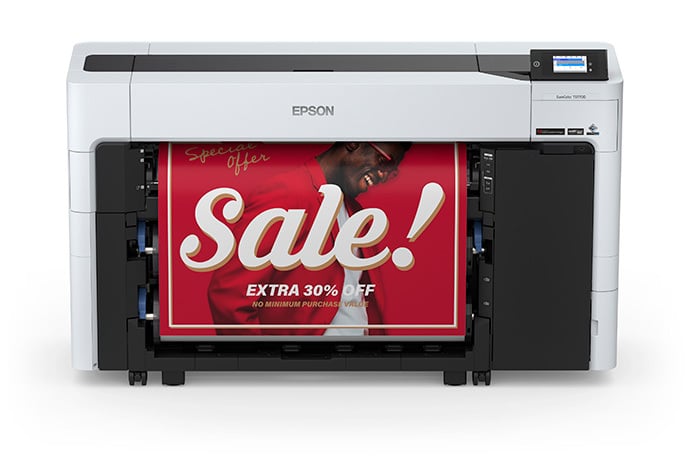

Epson SureColor T5770DR 36-Inch Large-Format Dual-Roll CAD/Technical Printer SCT5770DR

• 36-inch large-format technical printer designed for CAD, GIS, and production-level color graphics.
• Dual-roll productivity with automatic switching or roll-to-roll support via integrated take-up reel.
• High-efficiency 6-color UltraChrome XD3 pigment ink system including Red for expanded color range.
• Minimal footprint with a flat-top design for front-access loading and complete operational convenience.
• Standard 4.3-inch touchscreen interface offers easy navigation, configuration, and real-time job monitoring.

Print Quality and Speed

• PrecisionCore MicroTFP printhead with six-channel drop-on-demand technology ensures high-quality output.
• Prints A1/D-size documents on plain paper in just 16 seconds; glossy prints supported as well.
• Resolution up to 2400 x 1200 dpi with sharp lines and vibrant color reproduction.
• 9,600 total nozzles across six channels (1,600 per color) with real-time ink switching between Photo and Matte Black.
• Variable droplet sizes as small as 3.5 picoliters for fine detail in graphics and technical drawings.

Media Handling

• Supports dual roll inputs, with one roll optionally used as a take-up reel for roll-to-roll printing.
• Compatible with roll widths up to 36 inches, using 2″ or 3″ cores.
• Handles media thickness from 0.07 mm to 0.8 mm, including rigid posterboard up to 1.5 mm with cut-sheet feeding.
• Roll cutter is a high-speed internal rotary blade, replaceable for high-volume production use.
• Borderless printing supported on widths from 10″ to 36″ with precise margin control.
• Maximum printable length of 298 feet, with minimum line width of 0.08 mm and line accuracy ±0.1% or ±0.26 mm.

Connectivity and System Compatibility

• Interfaces include SuperSpeed USB 3.0, Gigabit Ethernet, wireless (802.11 b/g/n/ac), and USB stick input.
• Optional 960 GB SSD for on-board storage of print jobs.
• Adobe Embedded Print Engine included for native PDF and PostScript processing.
• Compatible with Windows XP through Windows 10 and Windows Server platforms, as well as macOS 10.9.5 and newer.
• Over 28 IT and security features including IC card authentication, data encryption, and IEEE 802.1x.

Operation and Environment

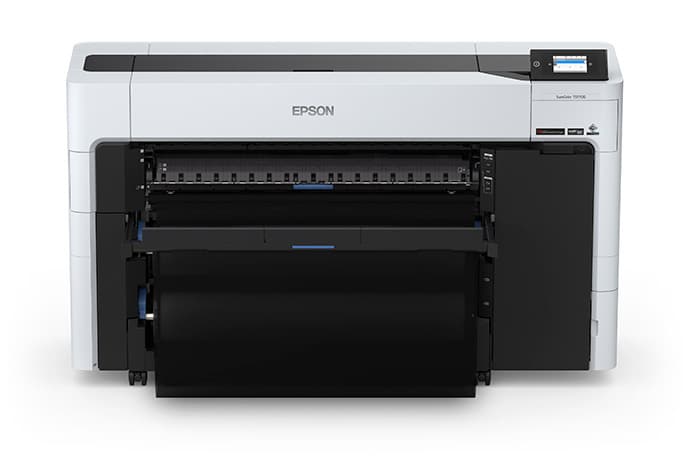

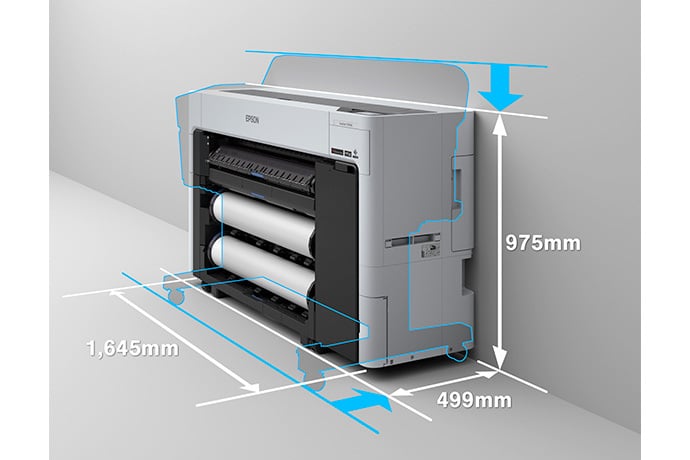

• Printer dimensions: 65″ x 33″ x 39″ with paper basket extended.
• Weight: 302 lbs, designed for stability and professional floor placement.
• Noise levels: Operating at 49.6 dBA, sleep mode at 6.6 dBA.
• Operating temperature range: 50 °F to 95 °F, with humidity support from 20%–80% (non-condensing).
• ENERGY STAR qualified and RoHS compliant; consumes approx. 80 W during printing, 32 W when idle, and 0.3 W in standby.

Accessories and Supplies

• Included with Printer:
  • SureColor T5770DR Printer
  • Full set of 240 mL UltraChrome XD3 initial ink cartridges (C, M, Y, R, MK, PK)
  • Maintenance Box and Borderless Maintenance Box (pre-installed)
  • Two roll media adapters
  • AC power cable and Start Here guide
• Ink Cartridge Options:
  • 110 mL:
    • Cyan (T51A220), Magenta (T51A320), Yellow (T51A420), Matte Black (T51A820), Photo Black (T51A120), Red (T51AF20)
  • 350 mL:
    • Cyan (T50S220), Magenta (T50S320), Yellow (T50S420), Matte Black (T50S820), Photo Black (T50S120), Red (T50SF20)
  • 700 mL:
    • Cyan (T50L220), Magenta (T50L320), Yellow (T50L420), Matte Black (T50L820), Photo Black (T50L120), Red (T50LF20)
• Optional Components:
  • Replacement Printer Cutter Blade (C13S210117)
  • Additional Roll Feed Spindle, 36″ (C12C937671)
  • Maintenance Box (C13S210115)
  • Borderless Maintenance Box (C13S210116)
  • Cleaning Stick (C13S090013)
  • 960 GB SSD Memory Unit (C12C936671)
  • Epson 36″ Stacker bond Arch D Sheets [SCHSFLP36] non-OEM
• Extended Service Plans:
  • 1-Year Next-Business-Day On-Site Repair (EPPT5700S1)
  • 2-Year Next-Business-Day On-Site Repair (EPPT5700S2)
  • 4-Year Next-Business-Day On-Site Repair (EPPT5700S4)

Reliability and Maintenance

• Minimal daily upkeep thanks to self-cleaning printhead and replaceable maintenance units.
• Smart paper remaining tracking via barcode scanner on roll media and visual alerts on control panel.
• Backed by a 1-year limited warranty with next-business-day repair service and phone support.
• Optional extended coverage up to 5 years for continuous, dependable operation.
• Country of origin: Indonesia

Available Option:

Epson 36″ Stacker bond Arch D Sheets [SCHSFLP36] non-OEM
