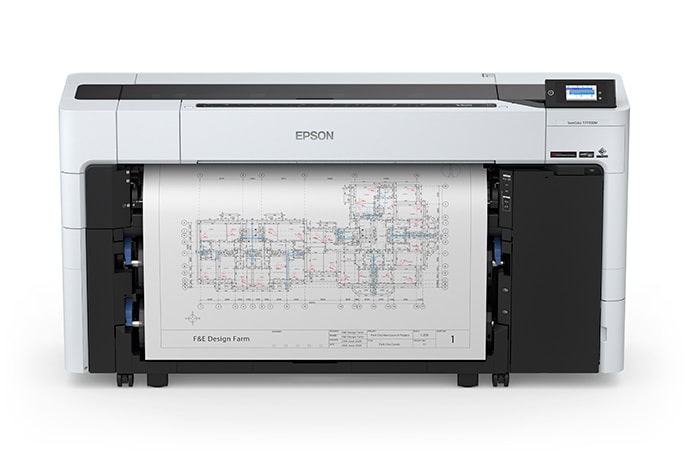

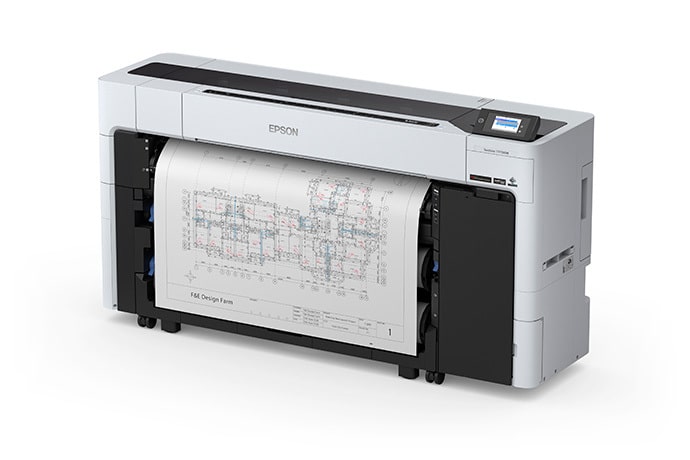

Epson SureColor T7770DM 44-Inch Large-Format Multifunction CAD/Technical Printer SCT7770DM

Overview

• Multifunction CAD and technical printer featuring Print, Copy, and Scan capabilities in a single device.
• Capable of producing A1/D-size prints in as little as 16 seconds using a 2.64″ PrecisionCore MicroTFP printhead.

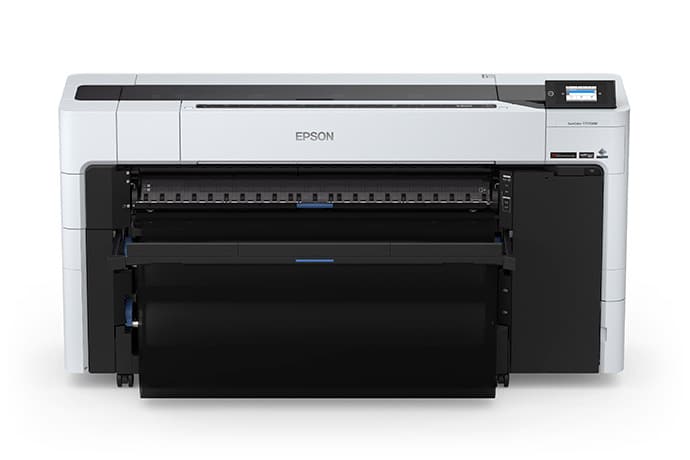

• Dual-roll design with integrated take-up reel enables roll-to-roll production or dual-media operation.
• Full front operation and flat-top design enable space-saving placement and ease of use.
• Equipped with a built-in 36-inch wide dual-light scanner for seamless scanning and copying with wrinkle-reduction.

• Utilizes UltraChrome XD3 pigment inks in six colors: Cyan, Magenta, Yellow, Red, Matte Black, and Photo Black.
• Dedicated Matte and Photo Black ink channels allow seamless switching without media-based interruptions.
• Produces stunning print quality with a maximum resolution of 2400 x 1200 dpi and a minimum droplet size of 3.5 picoliters.
• Line accuracy up to ±0.1% or ±0.26 mm with minimum line width of 0.08 mm ensures detailed technical output.
• Supports multiple file formats including Adobe PostScript 3, Adobe PDF 1.7, and utilizes the Adobe Embedded Print Engine.

Scanner Capabilities

• RGB CIS scanner with dual-light source scans documents up to 36 inches wide and 120 inches long at 300 dpi.
• Scan speeds up to 10 inches per second (monochrome) and 4.5 inches per second (color).
• Scans a wide variety of media including glossy, tracing paper, film, recycled paper, and more.
• Supports output formats such as JPEG, TIFF, PDF (single, multi-page), PDF/A, and encrypted PDFs.
• Scan to USB, mobile devices, PCs, or network folders with predefined enhancement modes for line drawings, blueprints, or renderings.

Media Handling

• Supports two input rolls; one can function as a take-up reel for continuous printing jobs.
• Roll media widths supported: 10″ to 44″ with core diameters of 2″ or 3″ using adjustable spindles.
• Handles roll media up to 6.69″ diameter and a weight of 27 lbs per roll.
• Cut-sheet support up to 44″ wide and 1.5 mm thick, including rigid posterboard.
• Borderless printing available for sizes ranging from 10″ to 44″ in select widths.
• High-speed internal rotary cutter included with automatic or manual control, replaceable for extended use.
• Print area control features a printable barcode system for monitoring roll paper remaining.

System Compatibility and Connectivity

• Compatible with Windows XP through Windows 10 (32- and 64-bit), Windows Server 2003–2019, and macOS 10.9.5 or later.
• Standard connectivity includes SuperSpeed USB 3.0, Gigabit Ethernet, and dual-band Wi-Fi (2.4 GHz and 5 GHz).
• USB stick input and optional RFID card reader available via expansion port.
• Built-in 960 GB SSD available for job spooling and high-volume production workflows.
• 6 GB printer memory and 3 GB scanner memory ensure fast processing of large print jobs.

Operational Characteristics

• Operating temperature range from 50°F to 95°F with 20–80% non-condensing humidity tolerance.
• Acoustic noise levels are 49.6 dBA during operation and just 6.6 dBA in sleep mode.
• Power consumption: 90 W while printing, 44 W in ready state, 2 W in sleep, and 0.3 W when powered off.
• Energy Star qualified and RoHS compliant for environmental responsibility.

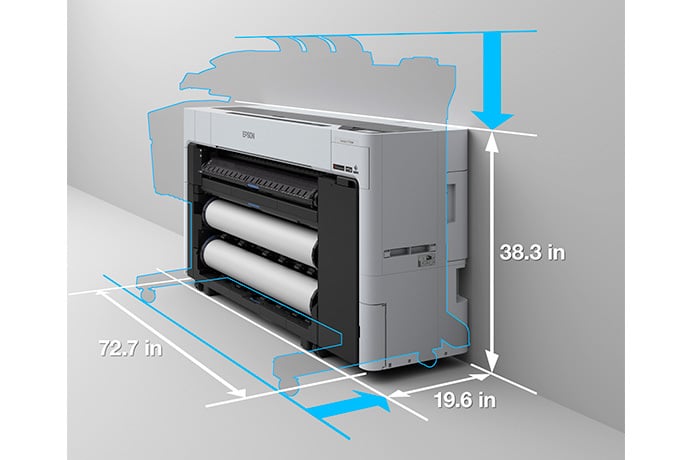

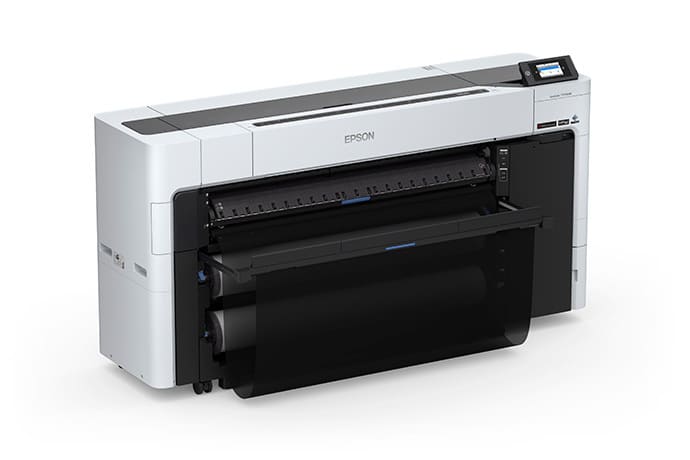

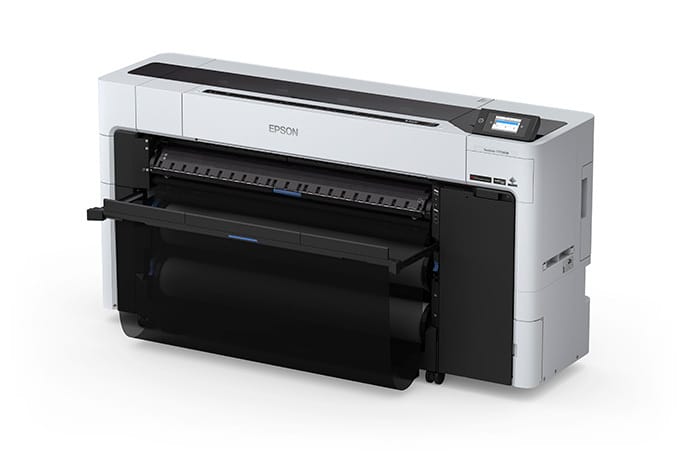

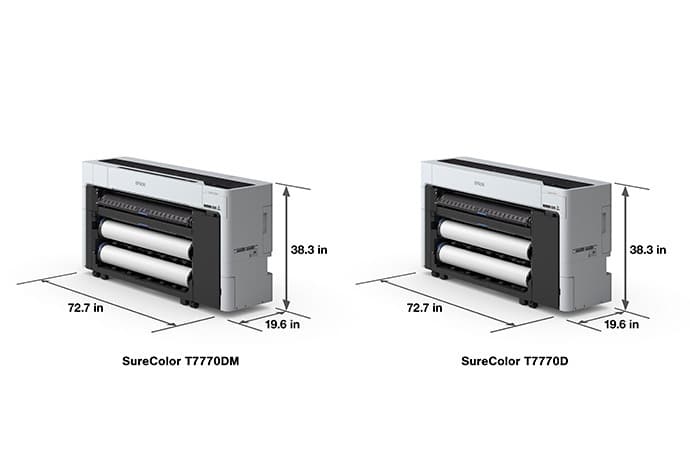

• Device dimensions with basket extended: 73″ x 33″ x 39″; total unit weight is 366 lbs.

Accessories and Supplies

• Included with the Printer:
  • SureColor T7770DM Printer
  • Initial ink cartridges (240 mL each): Cyan, Magenta, Yellow, Matte Black, Photo Black, Red
  • Maintenance Box and Borderless Maintenance Box
  • Two Roll Media Adapters (pre-installed)
  • AC Power Cable, Start Here Poster
• Replacement Ink Options:
  • 110 mL cartridges:
    • Cyan (T51A220), Magenta (T51A320), Yellow (T51A420), Matte Black (T51A820), Photo Black (T51A120), Red (T51AF20)
  • 350 mL cartridges:
    • Cyan (T50S220), Magenta (T50S320), Yellow (T50S420), Matte Black (T50S820), Photo Black (T50S120), Red (T50SF20)
  • 700 mL cartridges:
    • Cyan (T50L220), Magenta (T50L320), Yellow (T50L420), Matte Black (T50L820), Photo Black (T50L120), Red (T50LF20)
• Additional Accessories:
  • Replacement Printer Cutter Blade (C13S210117)
  • Additional 44″ Roll Feed Spindle (C12C936171)
  • Maintenance Box (C13S210115)
  • Borderless Maintenance Box (C13S210116)
  • Cleaning Stick (C13S090013)
• Extended Service Plans:
  • 1-Year Next-Business-Day On-Site Repair (EPPT7700DMS1)
  • 2-Year Next-Business-Day On-Site Repair (EPPT7700DMS2)
  • 4-Year Next-Business-Day On-Site Repair (EPPT7700DMS4)

Reliability and Support

• Includes standard 1-year limited warranty with next-business-day on-site service and dedicated support team.
• Extended service plans available for up to 5 years of continuous coverage.
• Manufactured in Indonesia with global certifications including NRTL, CSA/UL 62368-1, and FCC Class B compliance.
